HT - 952505

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-952505
$108.80

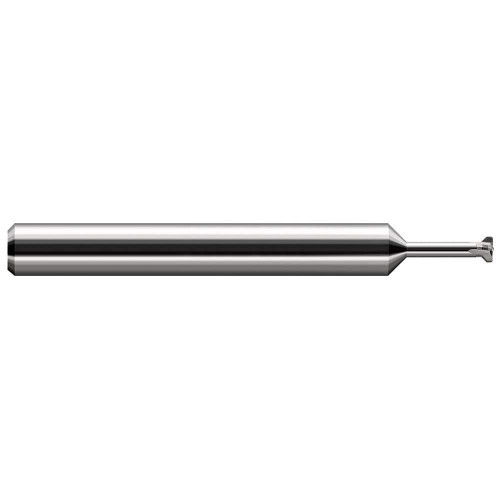

0.1930" Cutter DIA x 0.0200" Width (TSC) x 0.5470" (35/64) Neck Length Carbide Thread Relief Cutter, 4 Flutes

Specifications

Unit of Measure
Imperial
Diameter
0.20 Inch
Length of Cut
0.06 Inch
Shank Size
0.25 Inch
Overall Length
2.50 Inch
Coating/Finish
UN
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.12
Neck Diameter (Metric)
3
Corner Radius (Decimal)
0.01
Number of Flutes
4
Included Angle
90 degrees
Neck Length (Decimal)
0.55
Neck Length (Fractional)
35/64
Shank Size (Fractional)
1/4 Inch
Radius (Decimal)
0.01
Angle per Side
45 degrees
End Length (Decimal)
0.02
Radial Depth of Cut (Decimal)
0.04
HT - 952505
$108.80
