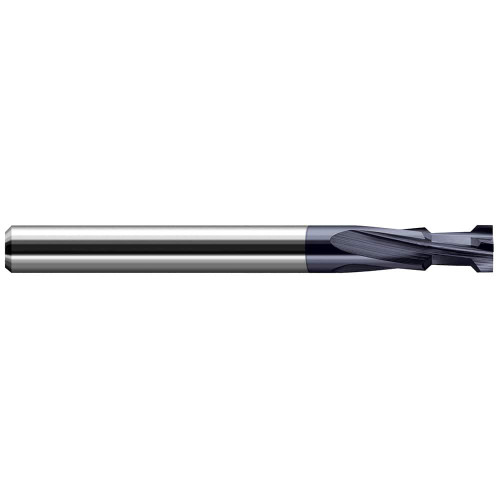

Harvey Tool Chamfer Mill: 1/8" Shank x 1-1/2" OAL, 90° Included, 4 Flute, AlTiN, 955204-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-955204-C3
$96.50

Harvey Tool chamfer mill, 4 flutes, 10 degree helix, plate chamfer end. Solid carbide, AlTiN coating. Manufacturer part number 955204-C3.

Specifications

Unit of Measure
Inch
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
1-1/2
Number of Flutes
4
Included Angle
90 degrees
Shank Diameter (Fractional)
1/8
Chamfer Length (Decimal)
0.0220
Radius (Decimal)
0.0060
Angle per Side
45 degrees
End to Center (Decimal)
0.0740
Minor Diameter (Decimal)
0.0910
End Length (Decimal)
0.0400
Max Opening Width (Decimal)
0.0680
Min Opening Width (Decimal)
0.0370
End Type
Plate Chamfer
Helix Angle
10 degrees
Material
Solid Carbide
Minor Diameter (Metric)
2.30
Harvey Tool Chamfer Mill: 1/8" Shank x 1-1/2" OAL, 90° Included, 4 Flute, AlTiN, 955204-C3
$96.50
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
