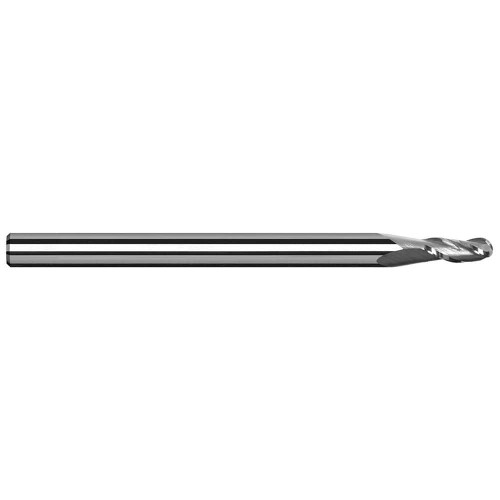

Harvey Tool Ball End Mill: 1/4" Dia, 3/8" LOC, 2-1/2" OAL, 3 Flute, Uncoated, 958216

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-958216
$55.00

Harvey Tool ball end mill for non-ferrous metals, 3 flutes, variable helix, center cutting. Solid carbide, uncoated. Manufacturer part number 958216.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.2500
Length of Cut (Decimal)
0.3750
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Length of Cut (Fractional)
3/8
Overall Length (Fractional)
2-1/2
Number of Flutes
3
Shank Diameter (Fractional)
1/4
Cutting Diameter (Fractional)
1/4
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Ball
LxD Ratio
1.5xD
Material
Solid Carbide
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Non-Ferrous
Harvey Tool Ball End Mill: 1/4" Dia, 3/8" LOC, 2-1/2" OAL, 3 Flute, Uncoated, 958216
$55.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
