HT - 959502-C6

Name: HT - 959502-C6
Brand: Harvey Tool
SKU: HAR-959502-C6
Price: 153.5 USD
Availability: InStock

Harvey Tool

No reviews yet Write a Review

$153.50

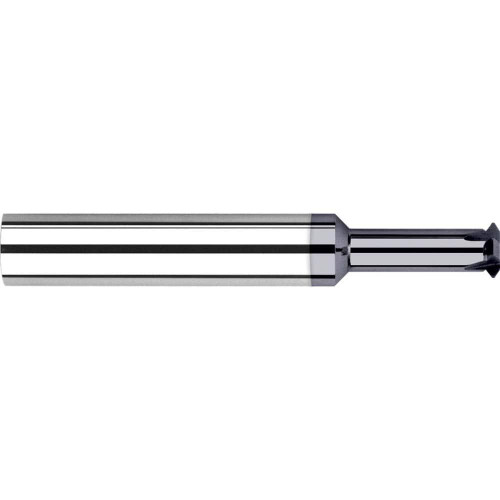

0.0440" Cutter DIA x 0.1870" (3/16) Reach Carbide Single Form #0 Thread Milling Cutter for Hardened Steels, 3 Flutes, AlTiN Nano Coated

Unit of Measure

Imperial

Diameter

0.05 Inch

Length of Cut

0.01 Inch

Shank Size

0.13 Inch

Overall Length

1.50 Inch

Coating/Finish

Overall Length (Fractional)

1-1/2

Neck Diameter (Decimal)

0.03

Number of Flutes

Included Angle

60 degrees

Shank Size (Fractional)

1/8 Inch

Size

Angle per Side

30 degrees

Tip Flat (Decimal)

0.0013

Max Depth of Thread (Decimal)

0.19

Max Depth of Thread (Fractional)

3/16

$153.50

Request a Quote

Buying in volume or need custom terms? Request a Quote.
