HT - 959550-C6

Name: HT - 959550-C6
Brand: Harvey Tool
SKU: HAR-959550-C6
Price: 174.2 USD
Availability: InStock

Harvey Tool

No reviews yet Write a Review

$174.20

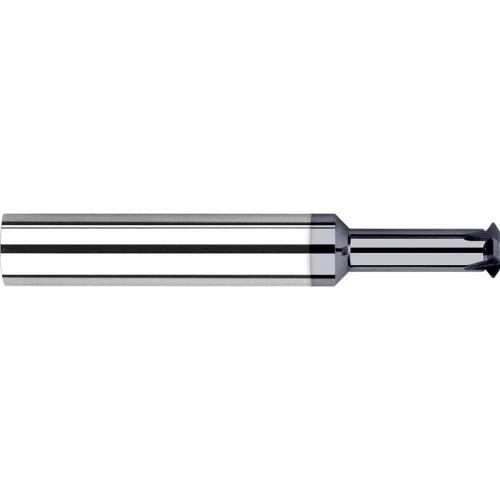

0.1800" Cutter DIA x 1.0000" (1) Reach Carbide Single Form #1/4 Thread Milling Cutter for Hardened Steels, 5 Flutes, AlTiN Nano Coated

Unit of Measure

Imperial

Diameter

0.18 Inch

Length of Cut

0.04 Inch

Shank Size

0.25 Inch

Overall Length

2.50 Inch

Coating/Finish

Overall Length (Fractional)

2-1/2

Neck Diameter (Decimal)

0.13

Number of Flutes

Included Angle

60 degrees

Shank Size (Fractional)

1/4 Inch

Size

1/4

Angle per Side

30 degrees

Tip Flat (Decimal)

0.003

Max Depth of Thread (Decimal)

Max Depth of Thread (Fractional)

$174.20

Request a Quote

Buying in volume or need custom terms? Request a Quote.
