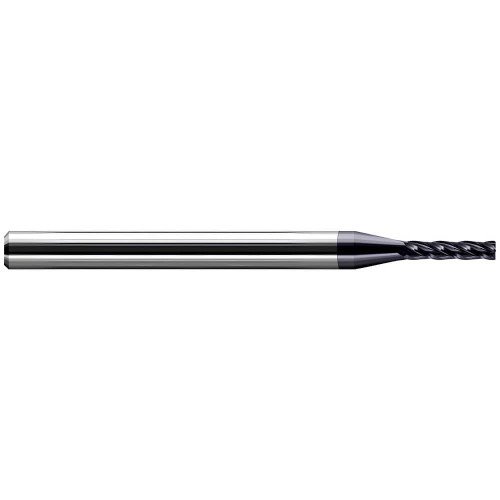

Harvey Tool Corner Radius End Mill: .039" Dia, 13/64" LOC, 2-1/2" OAL, .005" Corner Radius, 4 Flute, Uncoated, 959639

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-959639
$82.40

Harvey Tool corner radius end mill, 4 flutes, center cutting. Solid carbide, uncoated. Manufacturer part number 959639.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0390
Length of Cut (Decimal)
0.2030
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Length of Cut (Fractional)
13/64
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0050
Number of Flutes
4
Shank Diameter (Fractional)
1/8
Cutting Diameter (Metric)
1.00
Size System
Decimal
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
5xD
Material
Solid Carbide
