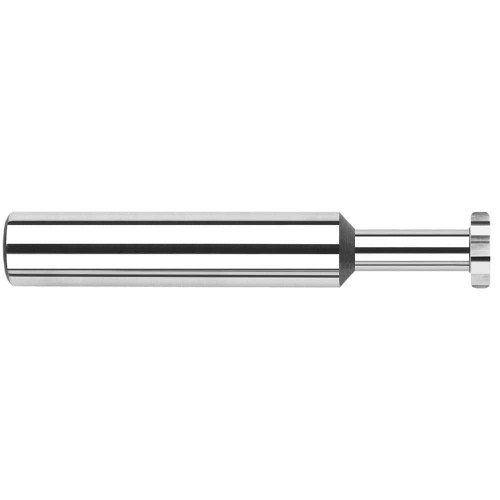

Harvey Tool Keyseat Cutter: 1/8" Dia, 1/64" Width, 6 Flute, Uncoated, 965115

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-965115
$82.50

Harvey Tool keyseat cutter, 6 flutes, corner radius end. Solid carbide, uncoated. Manufacturer part number 965115.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1250
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
Uncoated
Overall Length (Fractional)
1-1/2
Type
I
Corner Radius (Decimal)
0.0050
Neck Diameter (Decimal)
0.0620
Number of Flutes
6
Neck Length (Decimal)
0.1870
Neck Length (Fractional)
3/16
Shank Diameter (Fractional)
1/8
Neck Diameter (Fractional)
1/16
Cutting Diameter (Fractional)
1/8
Reach Multiple
1.5x
Cutter Width (Decimal)
0.0150
Cutter Width (Fractional)
1/64
Radial Depth of Cut (Decimal)
0.0220
Top Corner Radius
0.005
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Corner Radius
Material
Solid Carbide
Size System
Fractional
Harvey Tool Keyseat Cutter: 1/8" Dia, 1/64" Width, 6 Flute, Uncoated, 965115
$82.50
