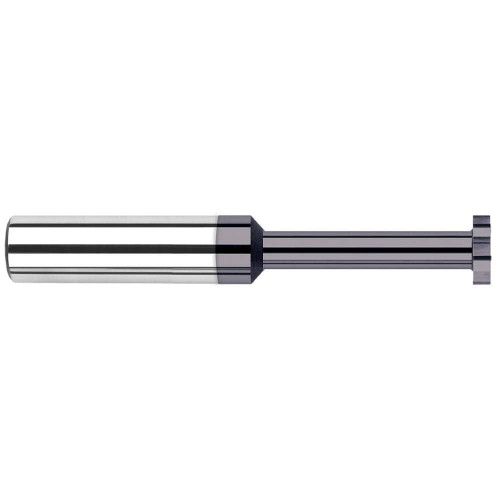

Harvey Tool Keyseat Cutter: 3/32" Dia, 1/32" Width, 4 Flute, AlTiN, 967731-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-967731-C3
$88.70

Harvey Tool keyseat cutter, 4 flutes, square end. Solid carbide, AlTiN coating. Manufacturer part number 967731-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0930
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
1-1/2
Type
I
Neck Diameter (Decimal)
0.0470
Number of Flutes
4
Neck Length (Decimal)
0.2810
Neck Length (Fractional)
9/32
Shank Diameter (Fractional)
1/8
Neck Diameter (Fractional)
3/64
Cutting Diameter (Fractional)
3/32
Reach Multiple
3x
Cutter Width (Decimal)
0.0310
Cutter Width (Fractional)
1/32
Radial Depth of Cut (Decimal)
0.0210
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Square
Material
Solid Carbide
Size System
Fractional
Harvey Tool Keyseat Cutter: 3/32" Dia, 1/32" Width, 4 Flute, AlTiN, 967731-C3
$88.70
