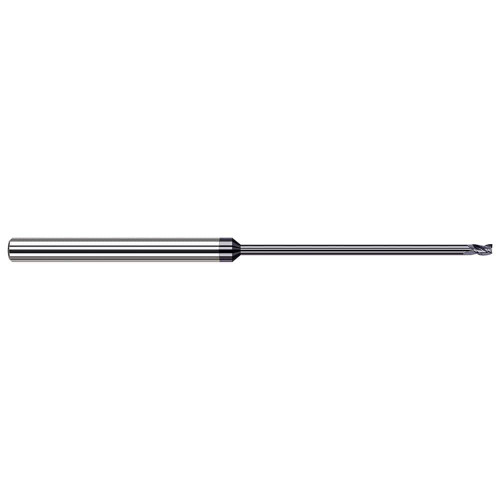

Harvey Tool Square End Mill: 1/16" Dia, 3/32" LOC, 3" OAL, 1-3/8" Reach, 3 Flute, AlTiN, 969662-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-969662-C3
$95.70

Harvey Tool square end mill, 3 flutes, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 969662-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0620
Length of Cut (Decimal)
0.0930
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
3.0000
Coating/Finish
AlTiN
Length of Cut (Fractional)
3/32
Neck Diameter (Decimal)
0.0605
Shank Diameter (Fractional)
1/8
Overall Length (Fractional)
3
Size System
Fractional
Cutting Diameter (Fractional)
1/16
Center Cutting
Yes
Reach Multiple
22x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Decimal)
1.3750
Reach (Fractional)
1-3/8
Harvey Tool Square End Mill: 1/16" Dia, 3/32" LOC, 3" OAL, 1-3/8" Reach, 3 Flute, AlTiN, 969662-C3
$95.70
