HT - 970960

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-970960
$177.80

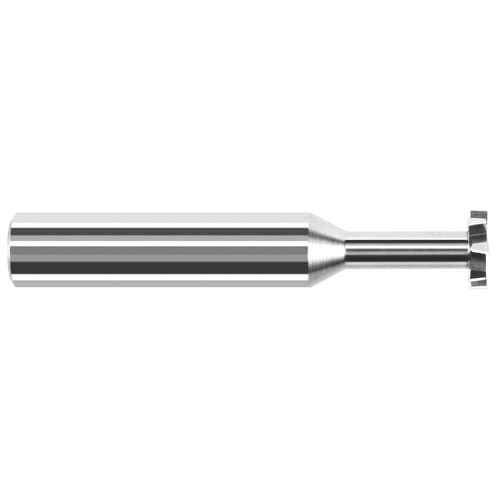

0.3750" (3/8) Cutter DIA x 0.0100" Radius x 0.1250" (1/8) Width x 0.5620" (9/16) Neck Length CarbideCorner Radius Standard Stagger Keyseat Cutter, 8 Flutes

Specifications

Unit of Measure
Imperial
Diameter
0.38 Inch
Shank Size
0.38 Inch
Overall Length
2.50 Inch
Coating/Finish
UN
Overall Length (Fractional)
2-1/2
Type
I
Corner Radius (Decimal)
0.01
Neck Diameter
0.19 Inch
Number of Flutes
8
Neck Length (Decimal)
0.57
Neck Length (Fractional)
9/16
Shank Size (Fractional)
3/8
Neck Diameter (Fractional)
3/16
Diameter (Fractional)
3/8
Reach Multiple
1.5x
Cutter Width
0.13 Inch
Cutter Width (Fractional)
1/8
Radial Depth of Cut (Decimal)
0.09
Top Corner Radius
0.01
