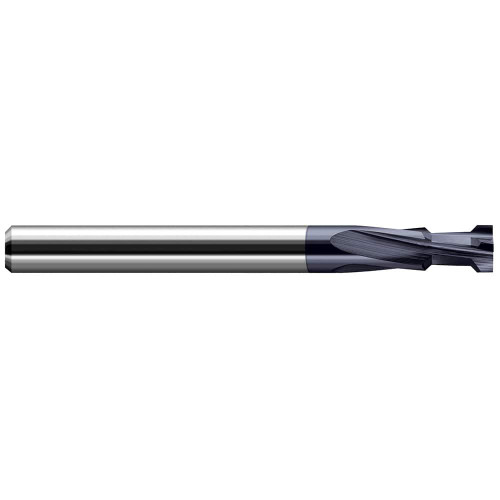

Harvey Tool Chamfer Mill: 1/4" Shank x 2-1/2" OAL, 90° Included, 4 Flute, AlTiN, 971116-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-971116-C3
$109.00

Harvey Tool chamfer mill, 4 flutes, 10 degree helix, plate chamfer end. Solid carbide, AlTiN coating. Manufacturer part number 971116-C3.

Specifications

Unit of Measure
Inch
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Number of Flutes
4
Included Angle
90 degrees
Shank Diameter (Fractional)
1/4
Chamfer Length (Decimal)
0.0440
Radius (Decimal)
0.0080
Angle per Side
45 degrees
End to Center (Decimal)
0.1900
Minor Diameter (Decimal)
0.1840
End Length (Decimal)
0.0600
Max Opening Width (Decimal)
0.2600
Min Opening Width (Decimal)
0.1980
End Type
Plate Chamfer
Helix Angle
10 degrees
Material
Solid Carbide
Harvey Tool Chamfer Mill: 1/4" Shank x 2-1/2" OAL, 90° Included, 4 Flute, AlTiN, 971116-C3
