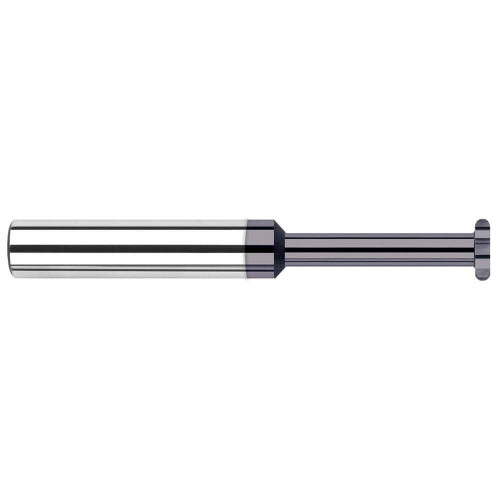

Harvey Tool Keyseat Cutter: 1/4" Dia, 1/16" Width, 6 Flute, AlTiN, 971431-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-971431-C3
$167.20

Harvey Tool keyseat cutter, 6 flutes, ball end. Solid carbide, AlTiN coating. Manufacturer part number 971431-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.2500
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Type
I
Neck Diameter (Decimal)
0.1250
Number of Flutes
6
Neck Length (Decimal)
0.7500
Neck Length (Fractional)
3/4
Shank Diameter (Fractional)
1/4
Neck Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
1/4
Radius (Decimal)
0.0313
Reach Multiple
3x
Radius (Fractional)
1/32
Cutter Width (Decimal)
0.0624
Radial Depth of Cut (Decimal)
0.0530
Cutter Width (Fractional)
1/16
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Ball
Material
Solid Carbide
Size System
Fractional
Harvey Tool Keyseat Cutter: 1/4" Dia, 1/16" Width, 6 Flute, AlTiN, 971431-C3
$167.20
