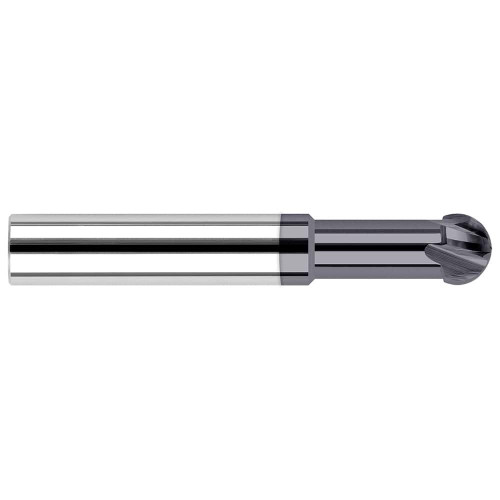

Harvey Tool Cutter: 3/8" Dia, .252" LOC, 4" OAL, 2.502" Reach, 4 Flute, AlTiN, 971624-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-971624-C3
$236.70

Harvey Tool cutter, 4 flutes, spherical end, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 971624-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.3750
Length of Cut (Decimal)
0.2520
Shank Diameter (Decimal)
0.3750
Overall Length (Decimal)
4.0000
Coating/Finish
AlTiN
Neck Diameter (Decimal)
0.2810
Number of Flutes
4
Neck Length (Decimal)
2.2500
Neck Length (Fractional)
2-1/4
Shank Diameter (Fractional)
3/8
Overall Length (Fractional)
4
Neck Diameter (Fractional)
9/32
Cutting Diameter (Fractional)
3/8
Radius (Decimal)
0.1875
Radius (Fractional)
3/16
Wrap Angle
220
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Spherical
Material
Solid Carbide
Reach (Decimal)
2.5020
Harvey Tool Cutter: 3/8" Dia, .252" LOC, 4" OAL, 2.502" Reach, 4 Flute, AlTiN, 971624-C3
$236.70
