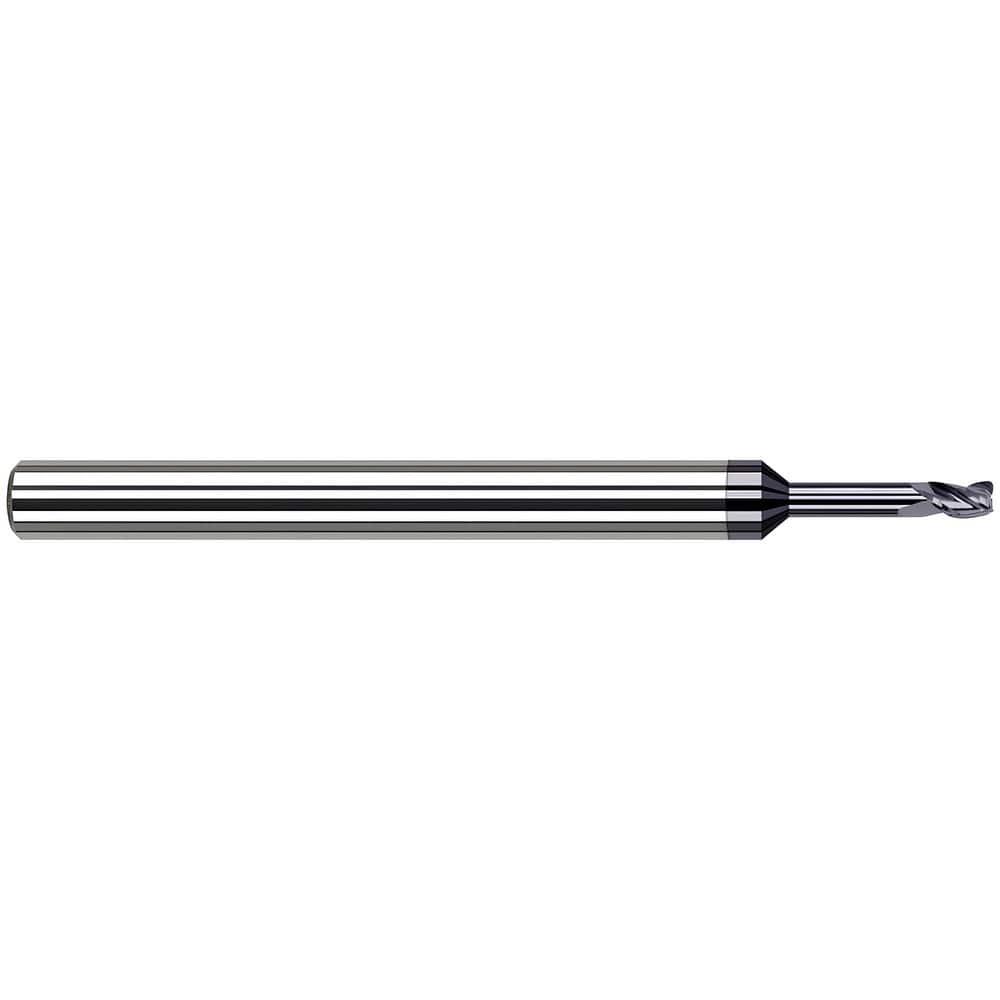

Harvey Tool Corner Radius End Mill: 1/64" Dia, .022" LOC, 2-1/2" OAL, .003" Corner Radius, 1/8" Reach, 3 Flute, AlTiN, 972715-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-972715-C3
$85.40

Harvey Tool corner radius end mill, 3 flutes. Solid carbide, AlTiN coating. Manufacturer part number 972715-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0150
Length of Cut (Decimal)
0.0220
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0030
Neck Diameter (Decimal)
0.0142
Number of Flutes
3
Shank Diameter (Fractional)
1/8
Size System
Fractional
Reach (Decimal)
0.1250
Cutting Diameter (Fractional)
1/64
Reach (Fractional)
1/8
Reach Multiple
8x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
1.5xD
Material
Solid Carbide
Harvey Tool Corner Radius End Mill: 1/64" Dia, .022" LOC, 2-1/2" OAL, .003" Corner Radius, 1/8" Reach, 3 Flute, AlTiN, 972715-C3
$85.40
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
