HT - 975405-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-975405-C3
$118.90

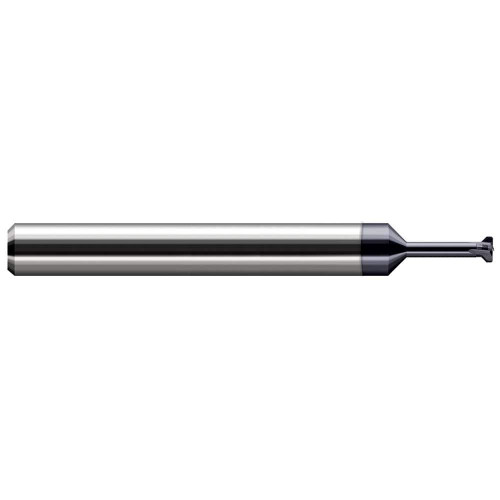

0.1420" Cutter DIA x 0.0200" Width (TSC) x 0.3590" (23/64) Neck Length Carbide Thread Relief Cutter, 4 Flutes, AlTiN Coated

Specifications

Unit of Measure
Imperial
Diameter
0.15 Inch
Length of Cut
0.05 Inch
Shank Size
0.25 Inch
Overall Length
2.50 Inch
Coating/Finish
C3
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.08
Corner Radius (Decimal)
0.01
Number of Flutes
4
Included Angle
90 degrees
Neck Length (Decimal)
0.36
Neck Length (Fractional)
23/64
Shank Size (Fractional)
1/4 Inch
Neck Diameter (Fractional)
5/64
Radius (Decimal)
0.01
Angle per Side
45 degrees
End Length (Decimal)
0.02
Radial Depth of Cut (Decimal)
0.03
HT - 975405-C3
$118.90
