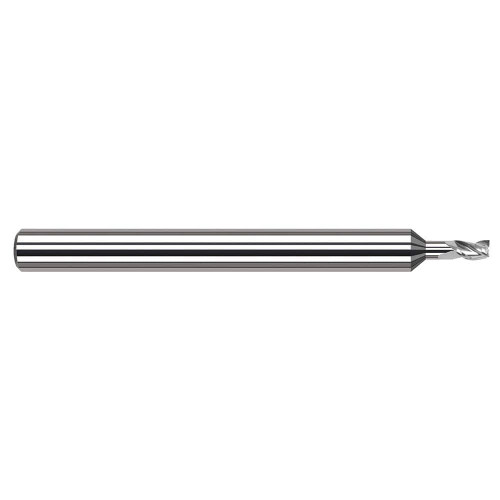

Harvey Tool Square End Mill: 3/16" Dia, 9/32" LOC, 3" OAL, .570" Reach, 3 Flute, Uncoated, 978412

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-978412
$63.00

Harvey Tool square end mill, 3 flutes, center cutting. Solid carbide, uncoated. Manufacturer part number 978412.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1875
Length of Cut (Decimal)
0.2810
Shank Diameter (Decimal)
0.1875
Number of Flutes
3
Overall Length (Decimal)
3.0000
Coating/Finish
Uncoated
Length of Cut (Fractional)
9/32
Neck Diameter (Decimal)
0.1830
Shank Diameter (Fractional)
3/16
Overall Length (Fractional)
3
Cutting Diameter (Fractional)
3/16
Size System
Fractional
Reach Multiple
3x
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Square
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Decimal)
0.5700
Harvey Tool Square End Mill: 3/16" Dia, 9/32" LOC, 3" OAL, .570" Reach, 3 Flute, Uncoated, 978412
$63.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
