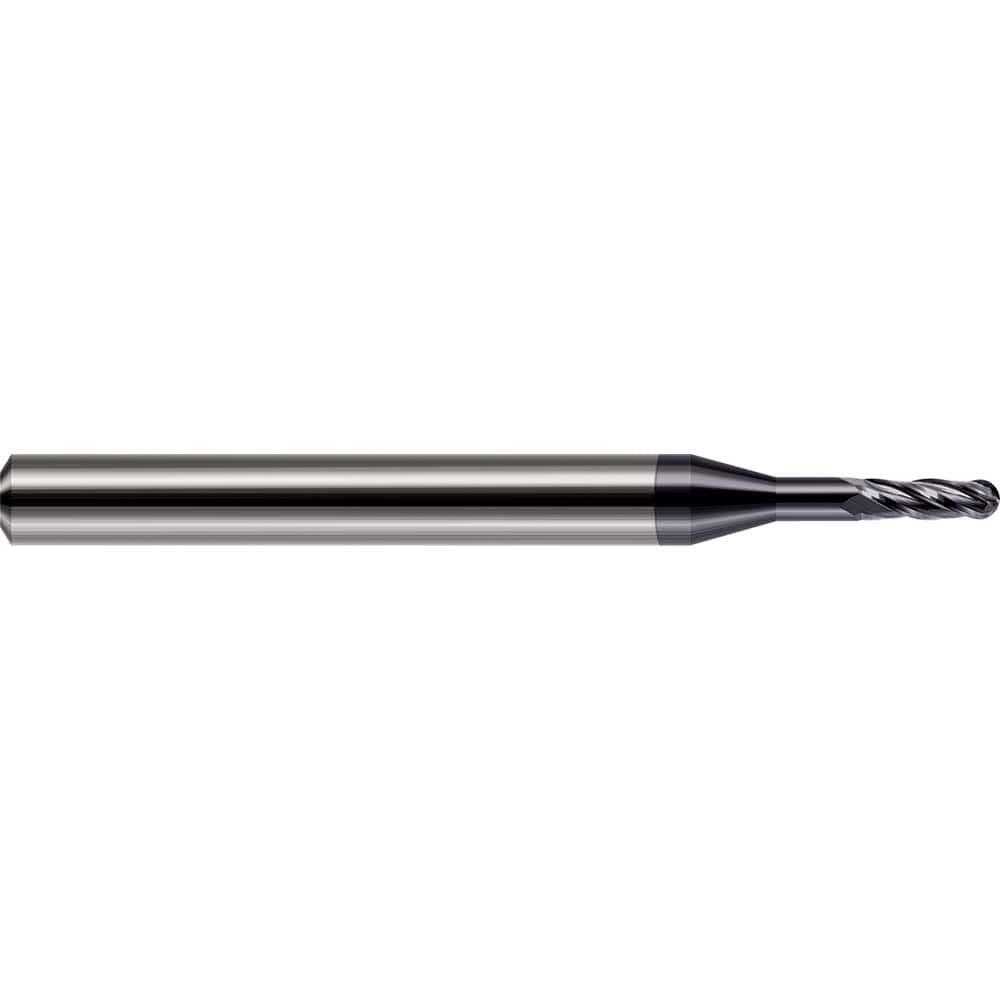

Harvey Tool Ball End Mill: .060" Dia, .180" LOC, 1-1/2" OAL, 5/16" Reach, 4 Flute, Uncoated, 982860

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-982860
$65.80

Harvey Tool ball end mill, 4 flutes, center cutting. Solid carbide, uncoated. Manufacturer part number 982860.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0600
Length of Cut (Decimal)
0.1800
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
Uncoated
Overall Length (Fractional)
1-1/2
Neck Diameter (Decimal)
0.0585
Number of Flutes
4
Shank Diameter (Fractional)
1/8
Neck Length (Decimal)
0.1320
Size System
Decimal
Center Cutting
Yes
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Ball
LxD Ratio
3xD
Material
Solid Carbide
Reach (Decimal)
0.3120
Reach (Fractional)
5/16
Harvey Tool Ball End Mill: .060" Dia, .180" LOC, 1-1/2" OAL, 5/16" Reach, 4 Flute, Uncoated, 982860
$65.80
