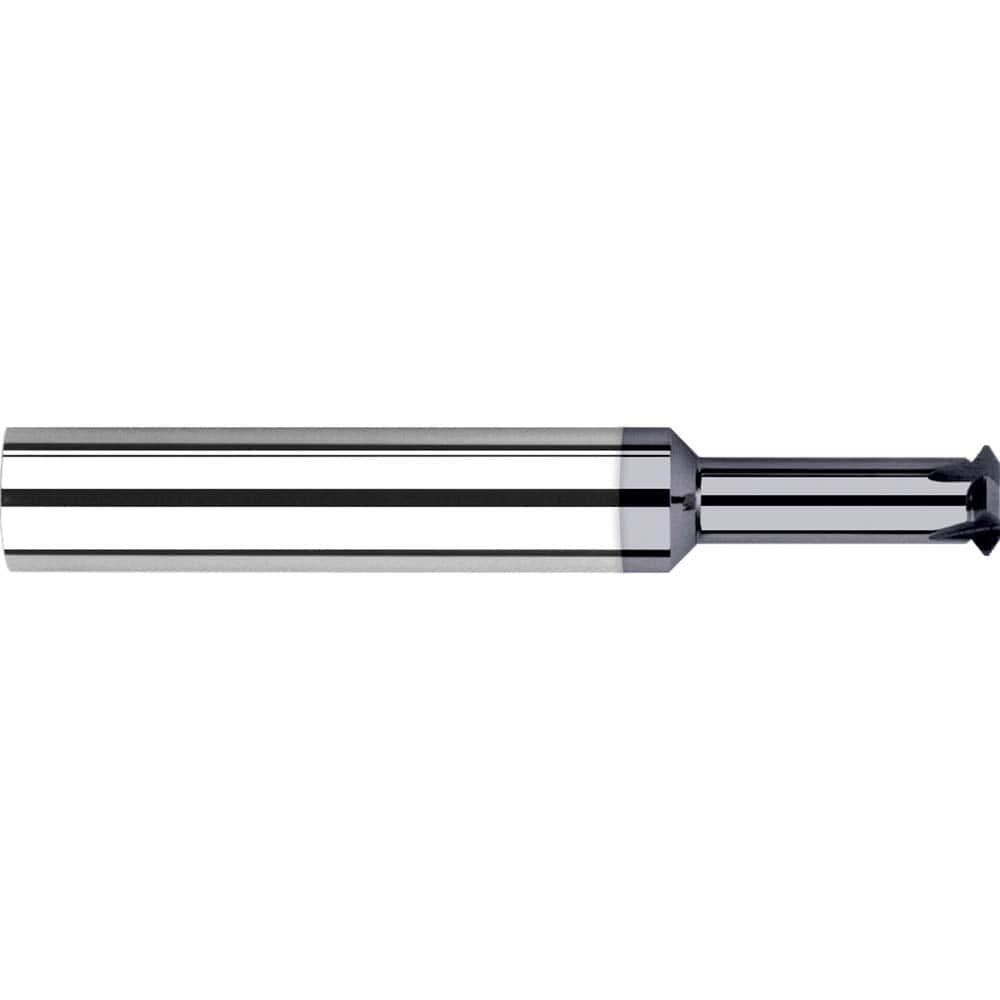

Harvey Tool Thread Mill: .080" Dia, .019" LOC, 2" OAL, 3 Flute, AlTiN Nano, 986610-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-986610-C6
$142.00

Harvey Tool thread mill, 3 flutes. Solid carbide, AlTiN Nano coating. Manufacturer part number 986610-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0800
Length of Cut (Decimal)
0.0190
Shank Diameter (Decimal)
0.1875
Overall Length (Decimal)
2.0000
Coating/Finish
AlTiN Nano
Neck Diameter (Decimal)
0.0500
Number of Flutes
3
Included Angle
60 degrees
Shank Diameter (Fractional)
3/16
Thread Size
#4
Angle per Side
30 degrees
Tip Flat (Decimal)
0.0021
Max Depth of Thread (Decimal)
0.1560
Max Depth of Thread (Fractional)
5/32
Material
Solid Carbide
Maximum Workpiece Hardness
68 HRC
Overall Length (Fractional)
2
Shank Tolerance
h6
