HT - 986645-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-986645-C6
$149.00

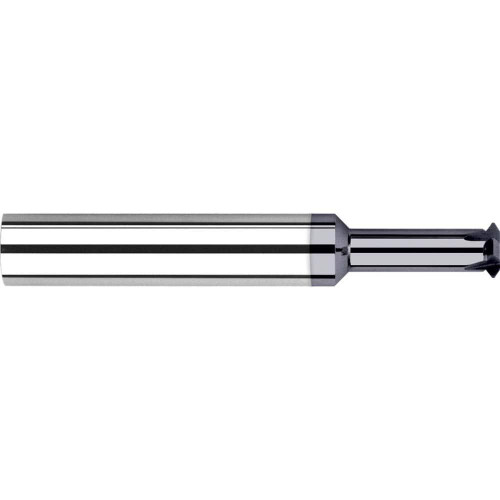

0.1600" Cutter DIA x 0.3750" (3/8) Reach Carbide Single Form #12 Thread Milling Cutter for Hardened Steels, 5 Flutes, AlTiN Nano Coated

Specifications

Unit of Measure
Imperial
Diameter
0.16 Inch
Length of Cut
0.04 Inch
Shank Size
0.25 Inch
Overall Length
2.50 Inch
Coating/Finish
C6
Length of Cut (Fractional)
1/32
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.12
Number of Flutes
5
Included Angle
60 degrees
Shank Size (Fractional)
1/4 Inch
Size
12
Angle per Side
30 degrees
Tip Flat (Decimal)
0.003
Max Depth of Thread (Decimal)
0.38
Max Depth of Thread (Fractional)
3/8
HT - 986645-C6
$149.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
