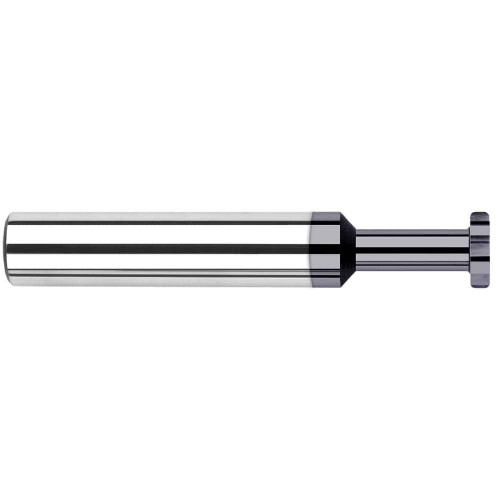

Harvey Tool Keyseat Cutter: 1/2" Dia, 1/8" Width, 8 Flute, AlTiN, 990360-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-990360-C3
$194.20

Harvey Tool keyseat cutter, 8 flutes, corner radius end. Solid carbide, AlTiN coating. Manufacturer part number 990360-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.5000
Shank Diameter (Decimal)
0.5000
Overall Length (Decimal)
3.0000
Coating/Finish
AlTiN
Type
I
Corner Radius (Decimal)
0.0150
Neck Diameter (Decimal)
0.2500
Number of Flutes
8
Neck Length (Decimal)
0.7500
Neck Length (Fractional)
3/4
Corner Radius (Fractional)
1/64
Shank Diameter (Fractional)
1/2
Neck Diameter (Fractional)
1/4
Cutting Diameter (Fractional)
1/2
Reach Multiple
1.5x
Cutter Width (Decimal)
0.1250
Cutter Width (Fractional)
1/8
Radial Depth of Cut (Decimal)
0.1150
Top Corner Radius
0.015
End Type
Corner Radius
Material
Solid Carbide
Overall Length (Fractional)
3
Size System
Fractional
Harvey Tool Keyseat Cutter: 1/2" Dia, 1/8" Width, 8 Flute, AlTiN, 990360-C3
$194.20
