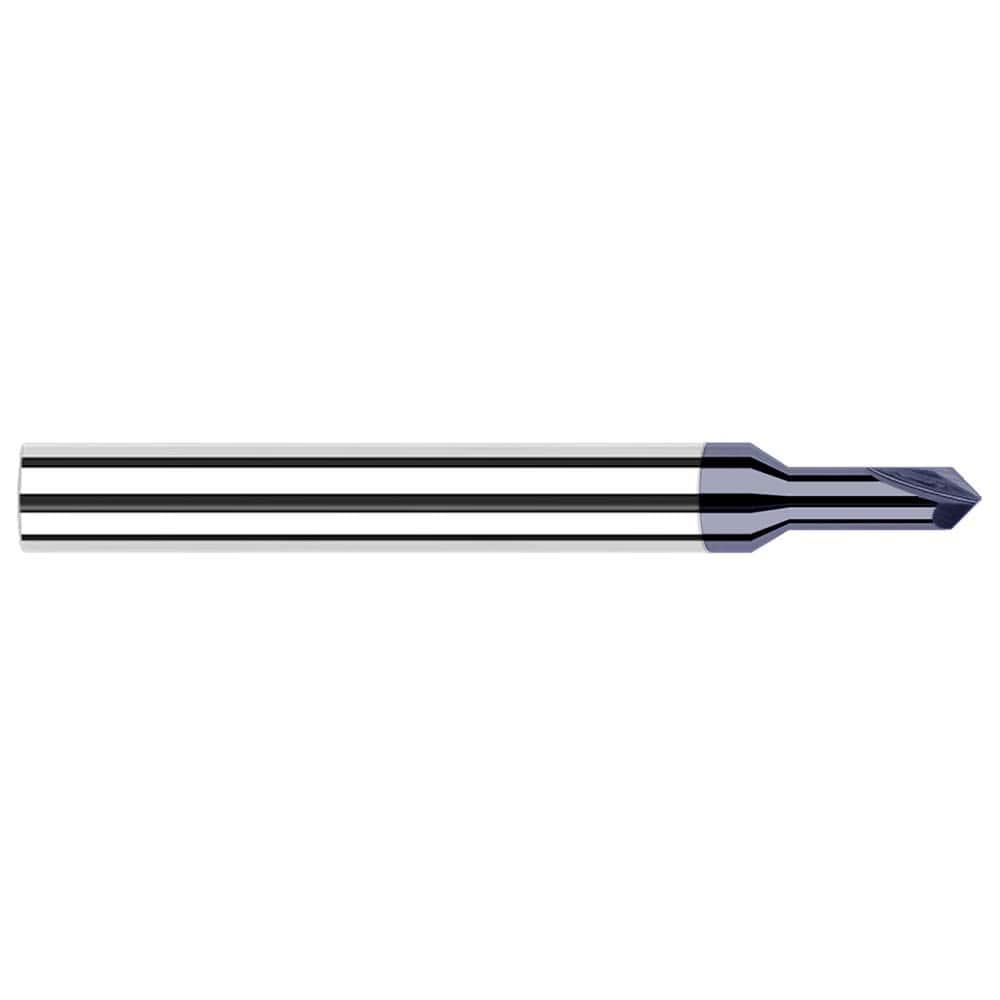

Harvey Tool Chamfer Mill: 1/8" Shank x .024" LOC x 2-1/2" OAL, 90° Included, 2 Flute, AlTiN, 996845-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-996845-C3
$51.40

Harvey Tool chamfer mill, 2 flutes, pointed end. Solid carbide, AlTiN coating. Manufacturer part number 996845-C3.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.0240
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Type
I
Neck Diameter (Decimal)
0.0470
Number of Flutes
2
Included Angle
90 degrees
Shank Diameter (Fractional)
1/8
Reach (Decimal)
0.2500
Tip Thickness (Decimal)
0.0050
Neck Diameter (Fractional)
3/64
Angle per Side
45 degrees
Reach Multiple
5x
Reach (Fractional)
1/4
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
End Type
Pointed
Material
Solid Carbide
Harvey Tool Chamfer Mill: 1/8" Shank x .024" LOC x 2-1/2" OAL, 90° Included, 2 Flute, AlTiN, 996845-C3
$51.40
