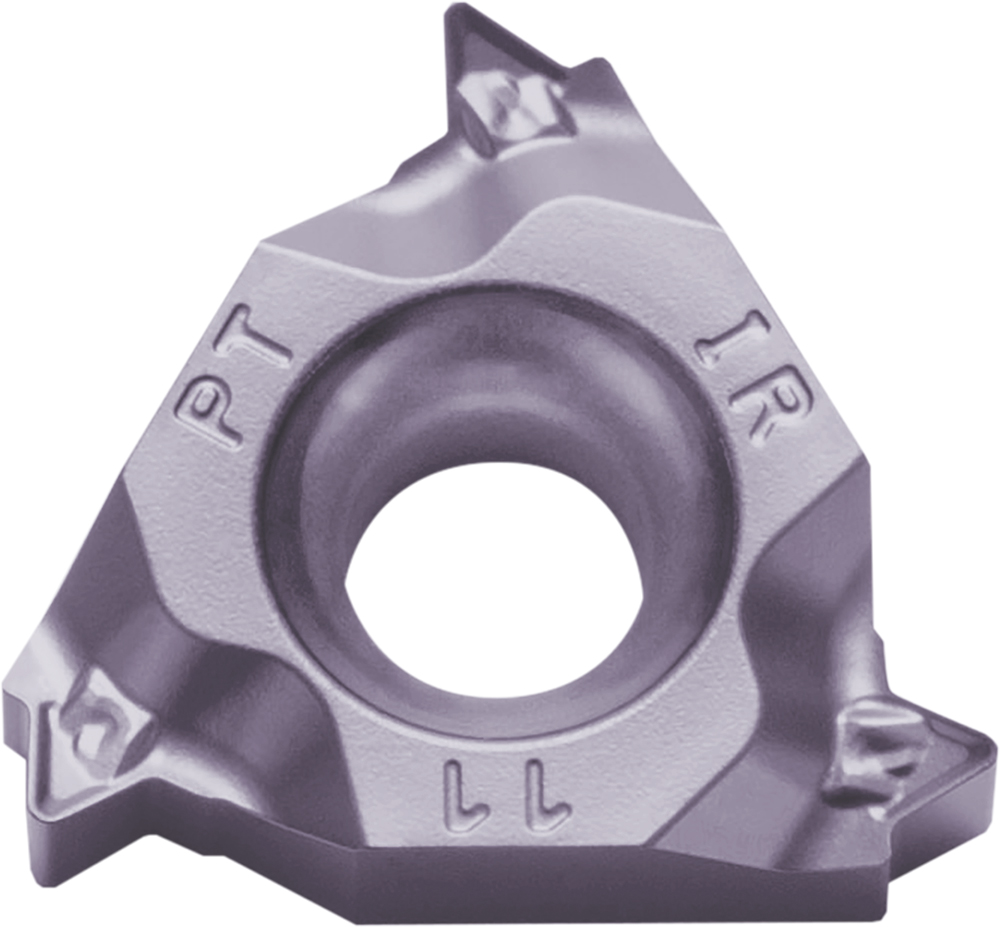

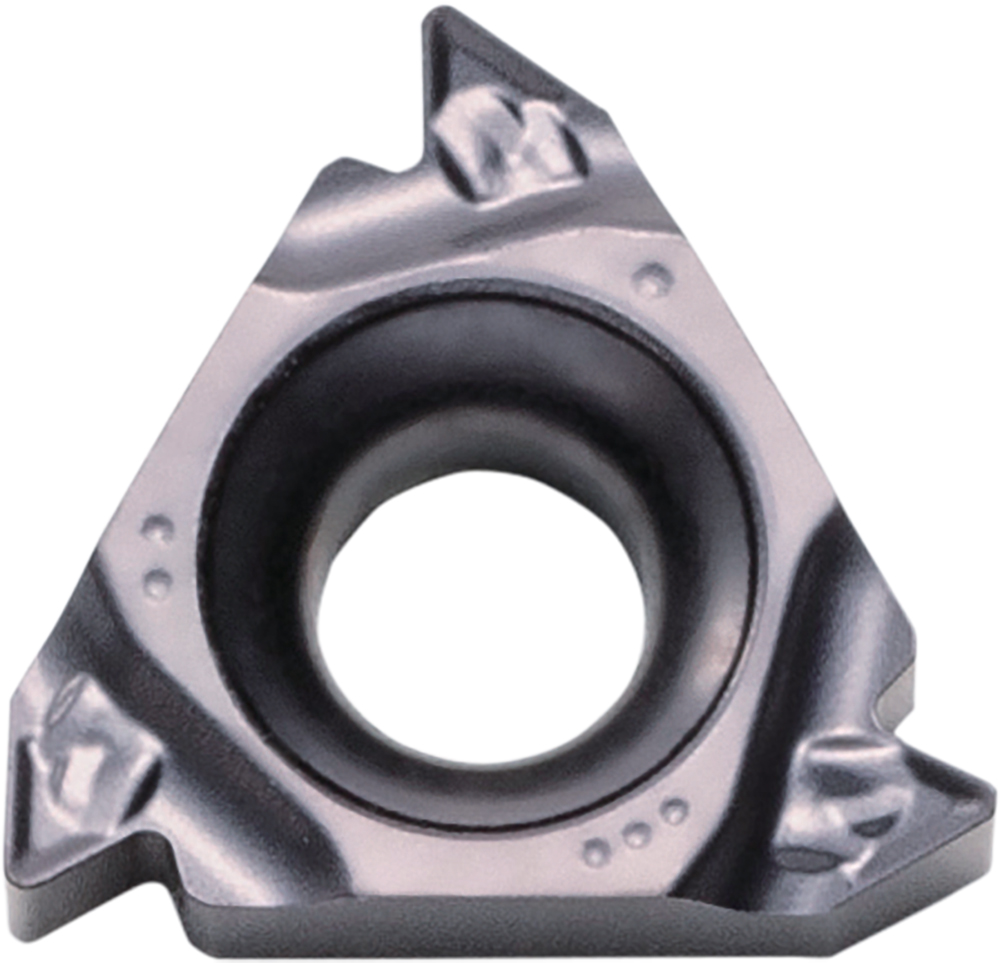

Kyocera 11 IR14BSPTTQ PR1535 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC19740
$31.28
Kyocera 11 IR14BSPTTQ PR1535 Grade PVD Carbide, Internal, 55 Degree Partial Profile, Right-Hand Threading Insert for Tapered Pipe [Rc(PT), (BSPT)] Threads

Specifications

Series
LDT
Unit of Measure
Fractional
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Grade
PR1535
Thickness
1/8 Inch
Style
11IR
Application
Internal Threading
Thread Standard
Tapered Pipe [Rc(PT), (BSPT)]
Insert Holding Method
Screw or Clamp
Thread Type
Internal
Size
11
Old Material Number
8849046
ANSI Part Number
11IR14BSPTTQPR1535
ISO Part Number
11IR14BSPT-TQ
Corner Radius (Metric)
0.22
Number of Cutting Edges
3
Corner Radius (Decimal)
0.01
Thickness (Metric)
3.18
Chipbreaker
TQ
Usage Classification
Continuous
Inscribed Circle (Metric)
6.35
Inscribed Circle Diameter mm
1/4 Inch
Thread Profile Type
55 Degree Partial Profile
Thread Pitch (TPI)
Rc(PT), (BSPT): 14
Pack quantity
5
Kyocera 11 IR14BSPTTQ PR1535 Grade PVD Carbide, Indexable Threading Insert
$31.28
