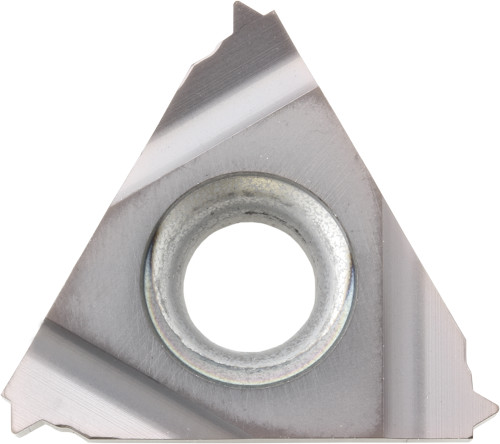

Kyocera 11 IR150ISO GW15 Grade Uncoated Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWF18310
$55.76
Kyocera 11 IR150ISO GW15 Grade Uncoated Carbide, Internal, 60 Degree Full Profile, Right-Hand Threading Insert for Metric (M) Threads

Specifications

Series
LDT
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Cast Iron|(N) Non-Ferrous Materials
Grade
GW15
Thickness
3.18 mm
Style
11IR
Application
Internal Threading
Thread Standard
Metric (M)
Insert Holding Method
Screw or Clamp
Thread Type
Internal
Size
11
Old Material Number
8827906
ANSI Part Number
11IR150ISOGW15
ISO Part Number
11IR150ISO
Corner Radius (Metric)
0.11
Number of Cutting Edges
3
Corner Radius (Decimal)
0.004
Thickness (Fractional)
1/8
Usage Classification
Continuous
Inscribed Circle (Fractional)
1/4
Inscribed Circle Diameter mm
6.35 mm
Thread Profile Type
60 Degree Full Profile
Thread Pitch (mm)
M: 1.50
Pack quantity
5
Kyocera 11 IR150ISO GW15 Grade Uncoated Carbide, Indexable Threading Insert
$55.76
