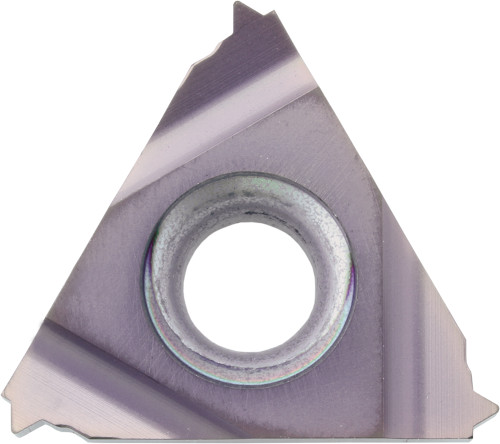

Kyocera 16 EL100ISO PR1115 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJY18264
$57.53
Kyocera 16 EL100ISO PR1115 Grade PVD Carbide, External, 60 Degree Full Profile, Left-Hand Threading Insert for Metric (M) Threads

Specifications

Series
LDT
Unit of Measure
Metric
Cutting Direction
Left
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(M) Stainless Steel
Grade
PR1115
Thickness
3.68 mm
Style
16EL
Application
External Threading
Thread Standard
Metric (M)
Insert Holding Method
Screw or Clamp
Thread Type
External
Size
16
Old Material Number
8829839
ANSI Part Number
16EL100ISOPR1115
ISO Part Number
16EL100ISO
Corner Radius (Metric)
0.12
Number of Cutting Edges
3
Corner Radius (Decimal)
0.01
Thickness (Decimal)
0.15
Usage Classification
Continuous
Inscribed Circle (Fractional)
3/8
Inscribed Circle Diameter mm
9.53 mm
Thread Profile Type
60 Degree Full Profile
Thread Pitch (mm)
M: 1.00
Pack quantity
5
Kyocera 16 EL100ISO PR1115 Grade PVD Carbide, Indexable Threading Insert
$57.53
