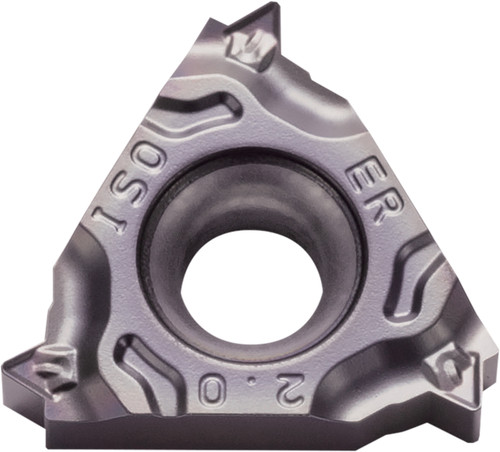

Kyocera 16 ER150ISOTQ PR1535 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC19704
$31.28
Kyocera 16 ER150ISOTQ PR1535 Grade PVD Carbide, External, 60 Degree Full Profile, Right-Hand Threading Insert for Metric (M) Threads

Specifications

Series
LDT
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Grade
PR1535
Thickness
3.68 mm
Style
16ER
Application
External Threading
Thread Standard
Metric (M)
Insert Holding Method
Screw or Clamp
Thread Type
External
Size
16
Old Material Number
8849028
ANSI Part Number
16ER150ISOTQPR1535
ISO Part Number
16ER150ISO-TQ
Corner Radius (Metric)
0.19
Number of Cutting Edges
3
Corner Radius (Decimal)
0.01
Thickness (Decimal)
0.15
Chipbreaker
TQ
Usage Classification
Continuous
Inscribed Circle (Fractional)
3/8
Inscribed Circle Diameter mm
9.53 mm
Thread Profile Type
60 Degree Full Profile
Thread Pitch (mm)
M: 1.50
Pack quantity
5
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
