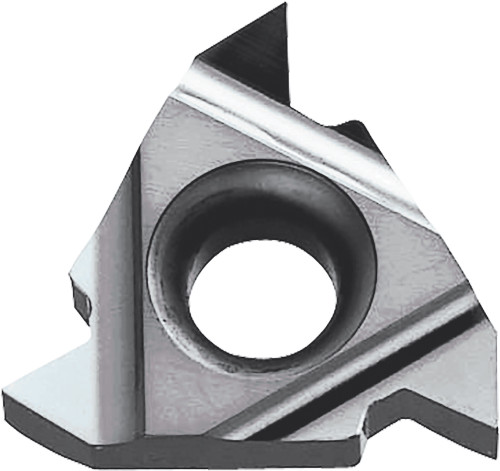

Kyocera 16 ERA60 GW15 Grade Uncoated Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWF18121
$55.76
Kyocera 16 ERA60 GW15 Grade Uncoated Carbide, External, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads

Specifications

Series
LDT
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Cast Iron|(N) Non-Ferrous Materials
Grade
GW15
Thickness
3.68 mm
Style
16ER
Application
Internal Threading
Thread Standard
Metric (M)|Unified (UN)
Insert Holding Method
Screw or Clamp
Thread Type
External
Size
16
Old Material Number
8827880
ANSI Part Number
16ERA60GW15
ISO Part Number
16ERA60
Corner Radius (Metric)
0.05
Number of Cutting Edges
3
Corner Radius (Decimal)
0.002
Thickness (Decimal)
0.15
Usage Classification
Continuous
Inscribed Circle (Fractional)
3/8
Inscribed Circle Diameter mm
9.53 mm
Thread Profile Type
60 Degree Partial Profile
Thread Pitch (TPI)
UN, UNF: 48-16
Thread Pitch (mm)
M: 0.50-1.50
Pack quantity
5
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
