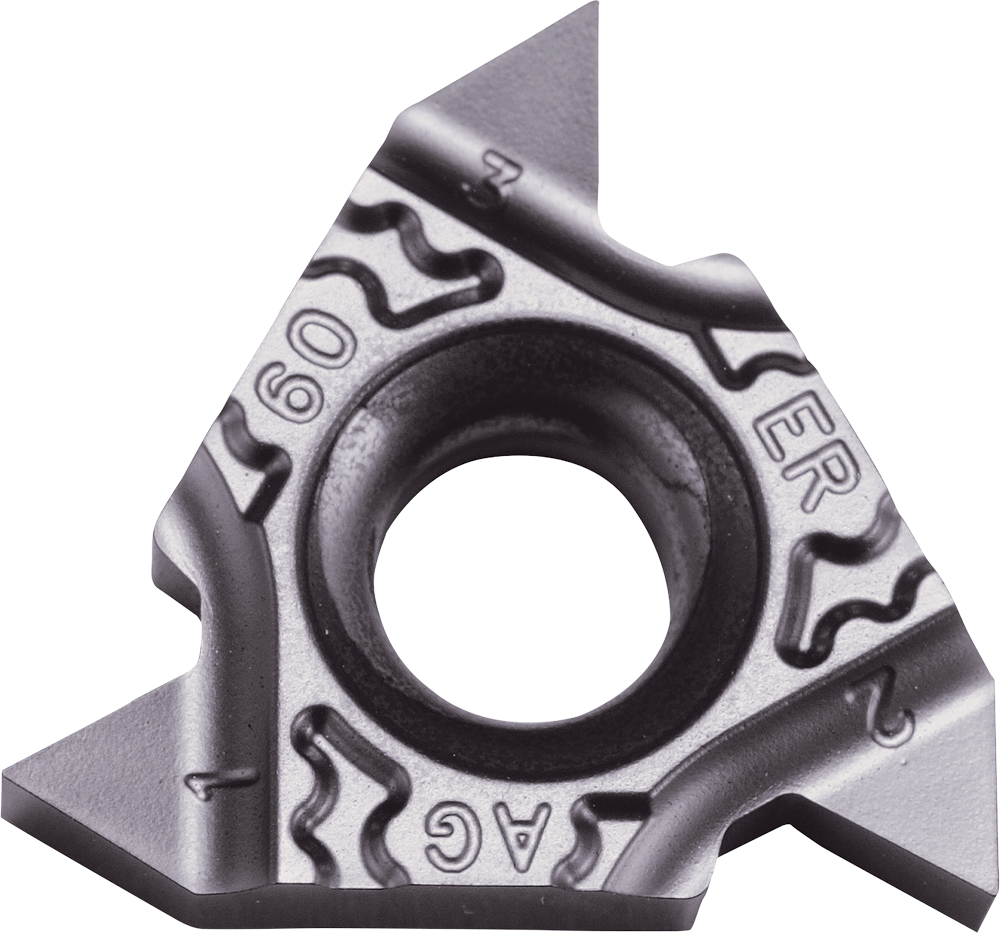

Kyocera 16 ERAG60TF PR1215 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH18198
$31.28
Kyocera 16 ERAG60TF PR1215 Grade PVD Carbide, External, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads

Specifications

Series
LDT
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Grade
PR1215
Thickness
3.68 mm
Style
16ER
Application
External Threading
Thread Standard
Metric (M)|Unified (UN)
Insert Holding Method
Screw or Clamp
Thread Type
External
Size
16
Old Material Number
8864337
ANSI Part Number
16ERAG60TFPR1215
ISO Part Number
16ERAG60-TF
Corner Radius (Metric)
0.06
Number of Cutting Edges
3
Corner Radius (Decimal)
0.002
Thickness (Decimal)
0.15
Chipbreaker
TF
Usage Classification
Continuous
Inscribed Circle (Fractional)
3/8
Inscribed Circle Diameter mm
9.53 mm
Thread Profile Type
60 Degree Partial Profile
Thread Pitch (TPI)
UN, UNF: 48-8
Thread Pitch (mm)
M: 0.50-3.00
Pack quantity
5
