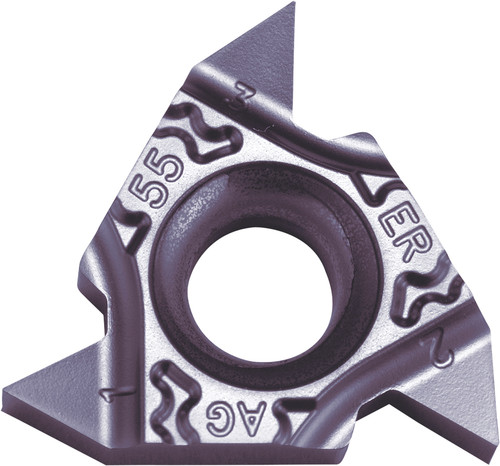

Kyocera 16 ERG55TF PR1115 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJY18162
$31.28
Kyocera 16 ERG55TF PR1115 Grade PVD Carbide, External, 55 Degree Partial Profile, Right-Hand Threading Insert for Parallel Pipe [G(PF)], Tapered Pipe [R(PT), (BSPT)], Whitworth (W) Threads

Specifications

Series
LDT
Unit of Measure
Fractional
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Grade
PR1115
Style
16ER
Application
External Threading
Thread Standard
Parallel Pipe [G(PF)]|Tapered Pipe [R(PT), (BSPT)]|Whitworth (W)
Insert Holding Method
Screw or Clamp
Thread Type
External
Size
16
Old Material Number
8829788
ANSI Part Number
16ERG55TFPR1115
ISO Part Number
16ERG55-TF
Corner Radius (Metric)
0.23
Number of Cutting Edges
3
Corner Radius (Decimal)
0.01
Thickness (Decimal)
0.15
Thickness (Metric)
3.68
Chipbreaker
TF
Usage Classification
Continuous
Inscribed Circle (Metric)
9.53
Inscribed Circle Diameter mm
3/8 Inch
Thread Profile Type
55 Degree Partial Profile
Thread Pitch (TPI)
G(PF), R(PT), (BSPT): 14, 11, W: 14-8
Pack quantity
5
