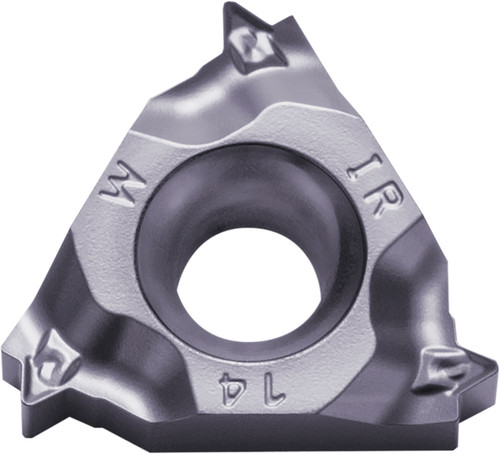

Kyocera 16 IR11WTQ PR1215 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH19736
$31.28
Kyocera 16 IR11WTQ PR1215 Grade PVD Carbide, Internal, 55 Degree Partial Profile, Right-Hand Threading Insert for Parallel Pipe [G(PF)], Whitworth (W) Threads

Specifications

Series
LDT
Unit of Measure
Fractional
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Grade
PR1215
Style
16IR
Application
Internal Threading
Thread Standard
Parallel Pipe [G(PF)]|Whitworth (W)
Insert Holding Method
Screw or Clamp
Thread Type
Internal
Size
16
Old Material Number
8848998
ANSI Part Number
16IR11WTQPR1215
ISO Part Number
16IR11W-TQ
Corner Radius (Metric)
0.30
Number of Cutting Edges
3
Corner Radius (Decimal)
0.01
Thickness (Decimal)
0.15
Thickness (Metric)
3.68
Chipbreaker
TQ
Usage Classification
Continuous
Inscribed Circle (Metric)
9.53
Inscribed Circle Diameter mm
3/8 Inch
Thread Profile Type
55 Degree Partial Profile
Thread Pitch (TPI)
G(PF): 11, W: 11
Pack quantity
5
Kyocera 16 IR11WTQ PR1215 Grade PVD Carbide, Indexable Threading Insert
$31.28
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
