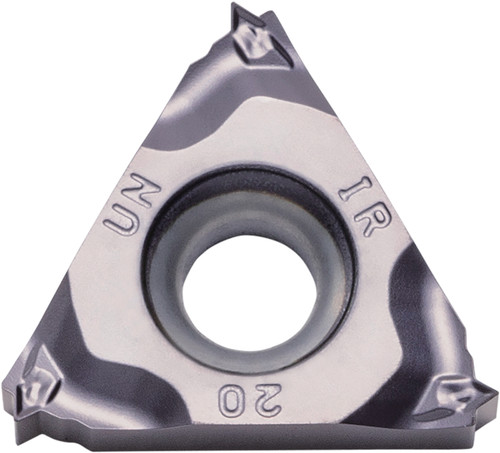

Kyocera 16 IR16UNTQ PR1515 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLG19806
$31.28
Kyocera 16 IR16UNTQ PR1515 Grade, Internal, 60 Degree Full Profile, Right-Hand Threading Insert for Unified (UN) Threads

Specifications

Series
LDT
Unit of Measure
Fractional
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Grade
PR1515
Style
16IR
Application
Internal Threading
Thread Standard
Unified (UN)
Insert Holding Method
Screw or Clamp
Thread Type
Internal
Size
16
Old Material Number
8861962
ANSI Part Number
16IR16UNTQPR1515
ISO Part Number
16IR16UN-TQ
Corner Radius (Metric)
0.10
Number of Cutting Edges
3
Corner Radius (Decimal)
0.004
Thickness (Decimal)
0.15
Thickness (Metric)
3.68
Chipbreaker
TQ
Usage Classification
Continuous
Inscribed Circle (Metric)
9.53
Inscribed Circle Diameter mm
3/8 Inch
Thread Profile Type
60 Degree Full Profile
Thread Pitch (TPI)
UN, UNF: 16
Pack quantity
5
Kyocera 16 IR16UNTQ PR1515 Grade PVD Carbide, Indexable Threading Insert
$31.28
