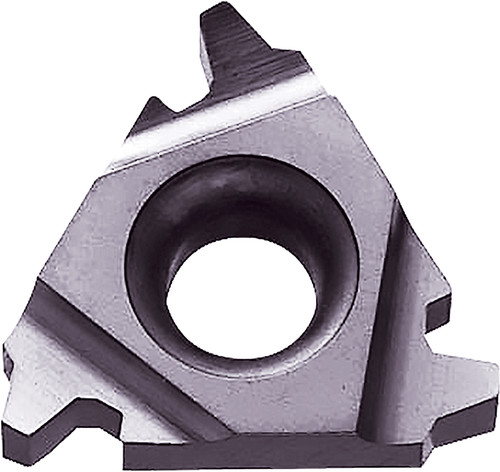

Kyocera 16 IR200TR PR1115 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJY18770
$66.54
Kyocera 16 IR200TR PR1115 Grade PVD Carbide, Internal, 30 Degree Partial Profile, Right-Hand Threading Insert for Trapezoidal (Tr) Threads

Specifications

Series
LDT
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Coating/Finish
TiAlN
IC Size (Fractional)
3/8
IC Size (Metric)
9.525
Insert Shape
Triangle
Insert Style
16IR
Insert Thickness (Metric)
3.68
Thread Standard
Trapezoidal
Insert Holding Method
Screw or Clamp
Thread Type
Internal
Insert Size
16
Old Material Number
8829860
Machining Operations
Internal Threading
Insert Grade
PR1115
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Corner Radius (Decimal)
0.0080
ANSI Designation
16IR200TRPR1115
Usage Classification
Continuous
Workpiece Material
Steel, Stainless Steel
ISO Designation
16IR200TR
Thread Profile Type
30 Degree Partial Profile
Thread Pitch (mm)
Tr: 2.0
Pack quantity
5
Coating Process
PVD
Insert Thickness (Decimal)
0.1450
Kyocera 16 IR200TR PR1115 Grade PVD Carbide, Indexable Threading Insert
$66.54
