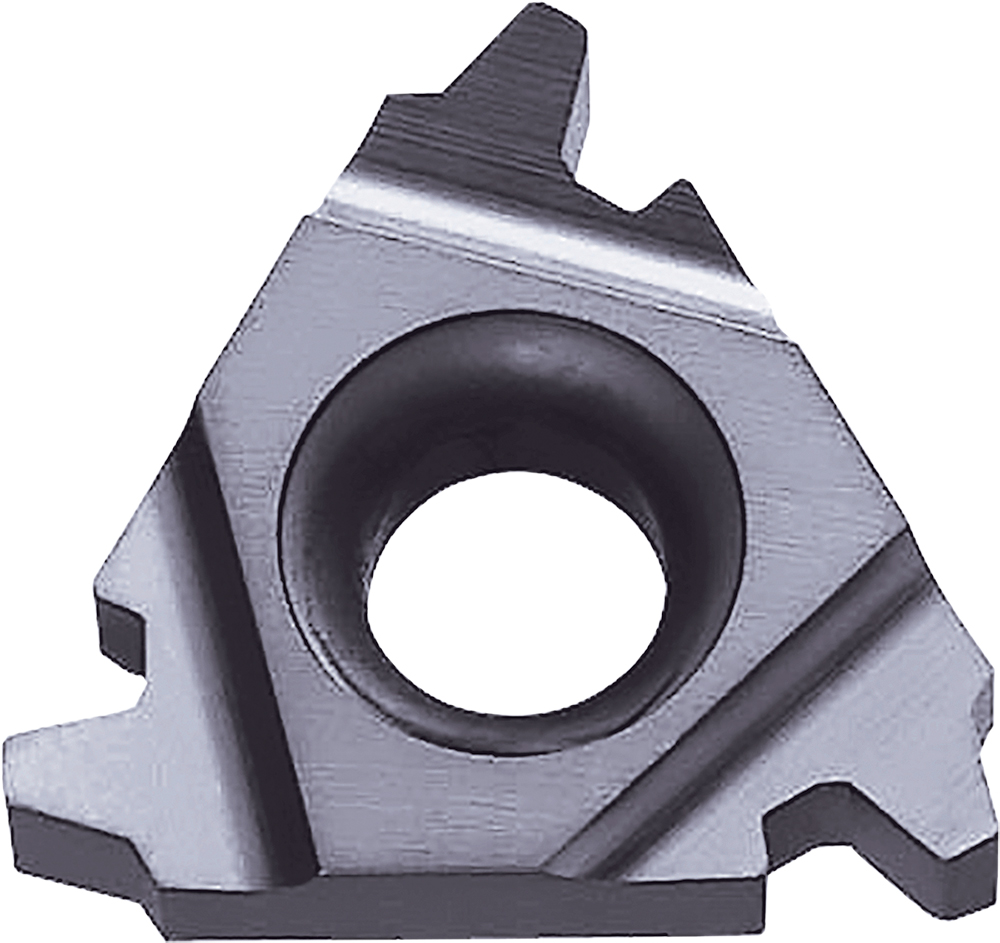

Kyocera 22 ER300ISO PR1115 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJY18285
$94.73
Kyocera 22 ER300ISO PR1115 Grade PVD Carbide, External, 60 Degree Full Profile, Right-Hand Threading Insert for Metric (M) Threads

Specifications

Series
LDT
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Grade
PR1115
Thickness
4.90 mm
Style
22ER
Application
External Threading
Thread Standard
Metric (M)
Insert Holding Method
Screw or Clamp
Thread Type
External
Size
22
Old Material Number
8858425
ANSI Part Number
22ER300ISOPR1115
ISO Part Number
22ER300ISO
Corner Radius (Metric)
0.41
Number of Cutting Edges
3
Corner Radius (Decimal)
0.02
Thickness (Decimal)
0.19
Usage Classification
Continuous
Inscribed Circle (Fractional)
1/2
Inscribed Circle Diameter mm
12.70 mm
Thread Profile Type
60 Degree Full Profile
Thread Pitch (mm)
M: 3.00
Pack quantity
5
