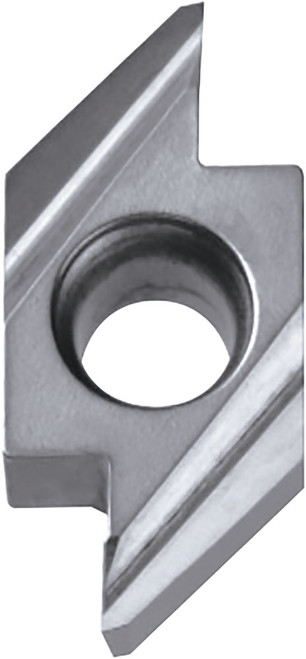

Kyocera ABW 15R4015 KW10 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE01201
$42.71
Kyocera ABW 15R4015 KW10 Grade Uncoated Carbide, 15 Degree, Irregular, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron

Specifications

Series
APBT
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Corner Radius
0.06 Inch
Style
ABW
Application
Back Turning
Shape
Irregular
Insert Holding Method
Screw or Clamp
Size
15-4015
Old Material Number
8800078
ANSI Part Number
ABW15R4015KW10
ISO Part Number
ABW15R4015
Rake
Positive
Material Group / Grade
KW10
Cutting Width (Decimal)
0.28
Cutting Width (Metric)
7
Cutting Width Minimum (Decimal)
0.28
Cutting Width Minimum (Metric)
7
Cutting Width Maximum (Decimal)
0.28
Cutting Width Maximum (Metric)
7
Corner Radius (Metric)
1.50
Number of Cutting Edges
2
Insert Length (Decimal)
0.61
Insert Length (Metric)
15.40
Thickness (Metric)
3.97
Cutting Range
Finishing
Usage Classification
Light Interruption
Pack quantity
10
Kyocera ABW 15R4015 KW10 Grade Uncoated Carbide, Indexable Turning Insert
$42.71
