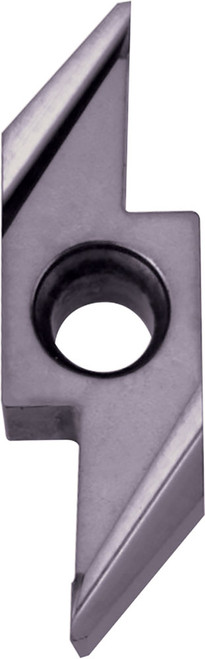

Kyocera ABW 23R5015 PR930 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT00996
$79.29
Kyocera ABW 23R5015 PR930 Grade PVD Carbide, 15 Degree, Irregular, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (M) Stainless Steel

Specifications

Series
APBT
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
0.06 Inch
Style
ABW
Application
Back Turning
Shape
Irregular
Insert Holding Method
Screw or Clamp
Size
23-5015
Old Material Number
8800085
ANSI Part Number
ABW23R5015PR930
ISO Part Number
ABW23R5015
Rake
Positive
Material Group / Grade
PR930
Cutting Width (Decimal)
0.28
Cutting Width (Metric)
7
Cutting Width Minimum (Decimal)
0.28
Cutting Width Minimum (Metric)
7
Cutting Width Maximum (Decimal)
0.28
Cutting Width Maximum (Metric)
7
Corner Radius (Metric)
1.50
Number of Cutting Edges
2
Insert Length (Decimal)
0.92
Insert Length (Metric)
23.40
Thickness (Metric)
3.97
Cutting Range
Finishing
Usage Classification
Light Interruption
Pack quantity
10
Kyocera ABW 23R5015 PR930 Grade PVD Carbide, Indexable Turning Insert
$79.29
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
