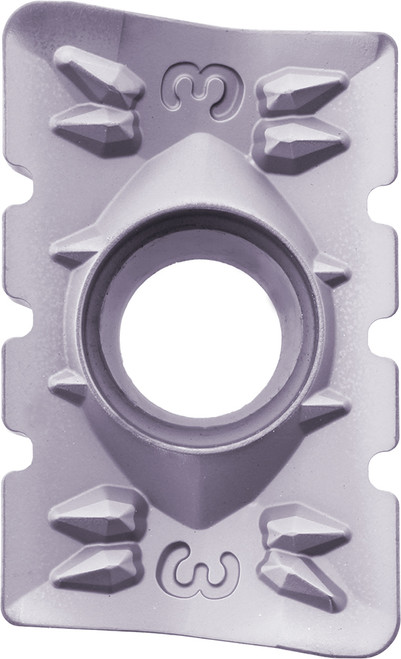

Kyocera APMT 250608ERNB3 PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00136
$102.59
Kyocera APMT 250608ERNB3 PR1810 Grade PVD Carbide, 85 Degree Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MSR
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1810
Thickness
6.35 mm
Style
APMT
Application
Facing, Heavy Milling, Shouldering, Slotting
Thickness (Fractional)
1/4
Shape
85 Degree Parallelogram
Insert Holding Method
Screw
ANSI Part Number
APMT250608ERNB3PR1810
ISO Part Number
APMT250608ER-NB3
Rake
Positive
Number of Cutting Edges
2
Insert Size
250608
Chipbreaker
ER-NB3
Cutting Range
Roughing
Insert Included Angle (Degree)
85 degrees
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Kyocera APMT 250608ERNB3 PR1810 Grade PVD Carbide, Indexable Milling Insert
$102.59
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
