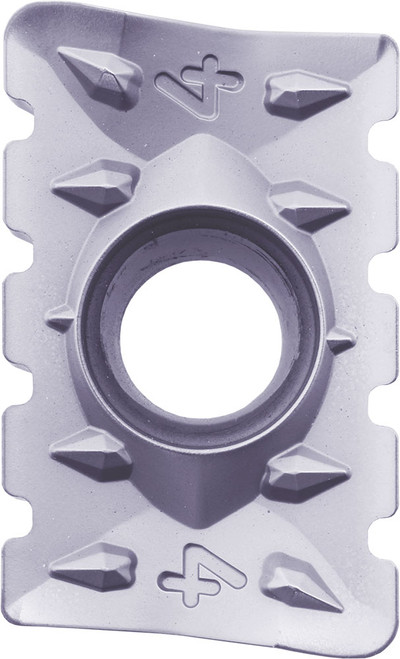

Kyocera APMT 250640ERNB4 PR1835 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLU00160
$102.59
Kyocera APMT 250640ERNB4 PR1835 Grade PVD Carbide, 85 Degree Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel

Specifications

Series
MSR
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Corner Radius
4 mm
Grade
PR1835
Thickness
6.35 mm
Style
APMT
Application
Facing, Heavy Milling, Shouldering, Slotting
Thickness (Fractional)
1/4
Shape
85 Degree Parallelogram
Insert Holding Method
Screw
ANSI Part Number
APMT250640ERNB4PR1835
ISO Part Number
APMT250640ER-NB4
Rake
Positive
Number of Cutting Edges
2
Insert Size
250640
Chipbreaker
ER-NB4
Cutting Range
Roughing
Corner Radius (Decimal)
0.16
Insert Included Angle (Degree)
85 degrees
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Kyocera APMT 250640ERNB4 PR1835 Grade PVD Carbide, Indexable Milling Insert
$102.59
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
