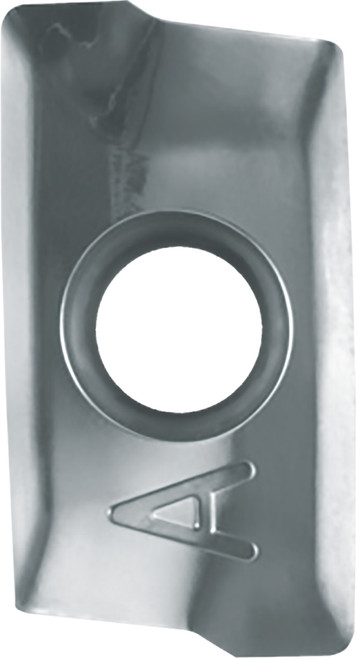

Kyocera BDGT 11T302FRJA GW25 Grade Uncoated Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWF00270
$33.83
Kyocera BDGT 11T302FRJA GW25 Grade Uncoated Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (N) Non-Ferrous Metals and (S) Titanium Alloy

Specifications

Series
MEC
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius
0.20 mm
Grade
GW25
Thickness
3.80 mm
Style
BDGT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.15
Shape
Parallelogram
Insert Holding Method
Screw
Old Material Number
8822195
ANSI Part Number
BDGT11T302FRJAGW25
ISO Part Number
BDGT11T302FR-JA
Rake
Positive
Number of Cutting Edges
2
Insert Size
11T302
Chipbreaker
FR-JA
Cutting Range
Roughing
Corner Radius (Decimal)
0.01
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
