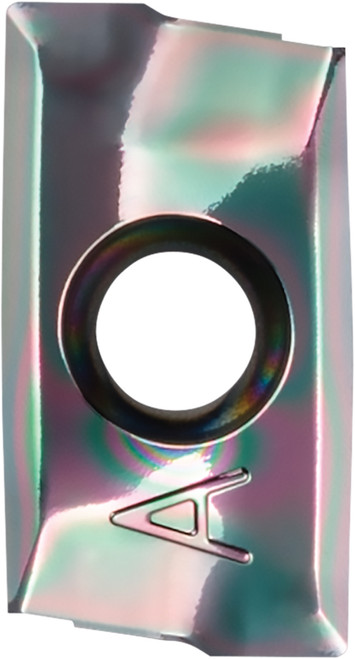

Kyocera BDGT 11T304FRJA PDL025 Grade DLC Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLE00271
$47.36
Kyocera BDGT 11T304FRJA PDL025 Grade DLC Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (N) Non-Ferrous Metals

Specifications

Series
MEC
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
DLC
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius
0.40 mm
Corner Radius (Fractional)
1/64
Grade
PDL025
Thickness
3.80 mm
Style
BDGT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.15
Shape
Parallelogram
Insert Holding Method
Screw
Old Material Number
8845148
ANSI Part Number
BDGT11T304FRJAPDL025
ISO Part Number
BDGT11T304FR-JA
Rake
Positive
Number of Cutting Edges
2
Insert Size
11T304
Chipbreaker
FR-JA
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
