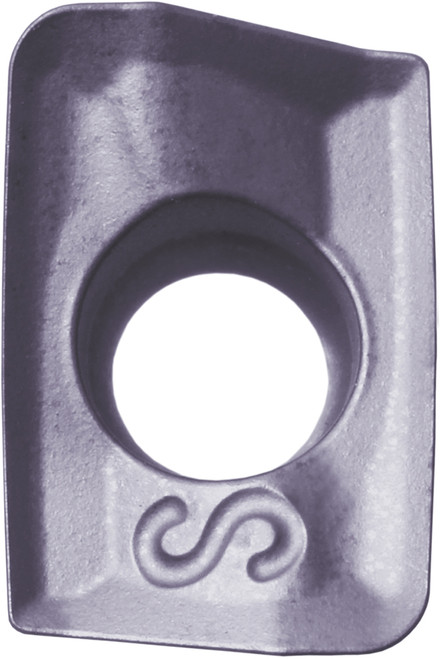

Kyocera Milling Insert BDMT070304ERJS PR1835: TLU00062

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLU00062
$25.42

Kyocera Milling Insert BDMT070304ERJS PR1835, manufacturer part number TLU00062.

Specifications: Insert Thickness: 2.60 mm (0.1020 in); Corner Radius: 0.40 mm (1/64 in); Insert Holding Method: Screw; Rake: Positive; Number of Cutting Edges: 2; Insert Size: 070304; Cutting Range: Roughing; Hand Direction: Right; Insert Style: BDMT; ANSI Designation: BDMT070304ERJSPR1835; Chip Breaker Type: ER-JS; ISO Designation: BDMT070304ER-JS; Machining Operations: Facing, Helical Milling, Shouldering, Slotting; Insert Grade: PR1835; Workpiece Material: Stainless Steel, High-Temp Alloy, Steel; Insert Shape: Parallelogram; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO EX. Series: MECX. Unit of measure: Metric.

Specifications

Series
MECX
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT NANO EX
Insert Thickness (Metric)
2.60
Corner Radius (Metric)
0.40
Corner Radius (Fractional)
1/64
Machining Operations
Facing, Helical Milling, Shouldering, Slotting
ANSI Designation
BDMT070304ERJSPR1835
Insert Style
BDMT
Insert Grade
PR1835
Chip Breaker Type
ER-JS
Insert Shape
Parallelogram
Insert Holding Method
Screw
Workpiece Material
Stainless Steel, High-Temp Alloy, Steel
Insert Thickness (Decimal)
0.1020
Rake
Positive
Number of Cutting Edges
2
Insert Size
070304
ISO Designation
BDMT070304ER-JS
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Coating Process
PVD
