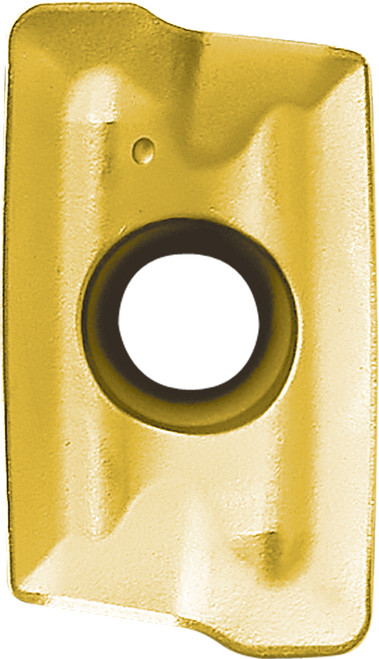

Kyocera BDMT 110302ERJT CA6535 Grade CVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMA00322
$26.00
Kyocera BDMT 110302ERJT CA6535 Grade CVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
MEC
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(M) Martensitic Stainless Steel|(S) Heat-Resistant Alloy
Corner Radius
0.20 mm
Grade
CA6535
Thickness
3 mm
Style
BDMT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.12
Shape
Parallelogram
Insert Holding Method
Screw
Old Material Number
8842386
ANSI Part Number
BDMT110302ERJTCA6535
ISO Part Number
BDMT110302ER-JT
Rake
Positive
Number of Cutting Edges
2
Insert Size
110302
Chipbreaker
ER-JT
Cutting Range
Roughing
Corner Radius (Decimal)
0.01
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
