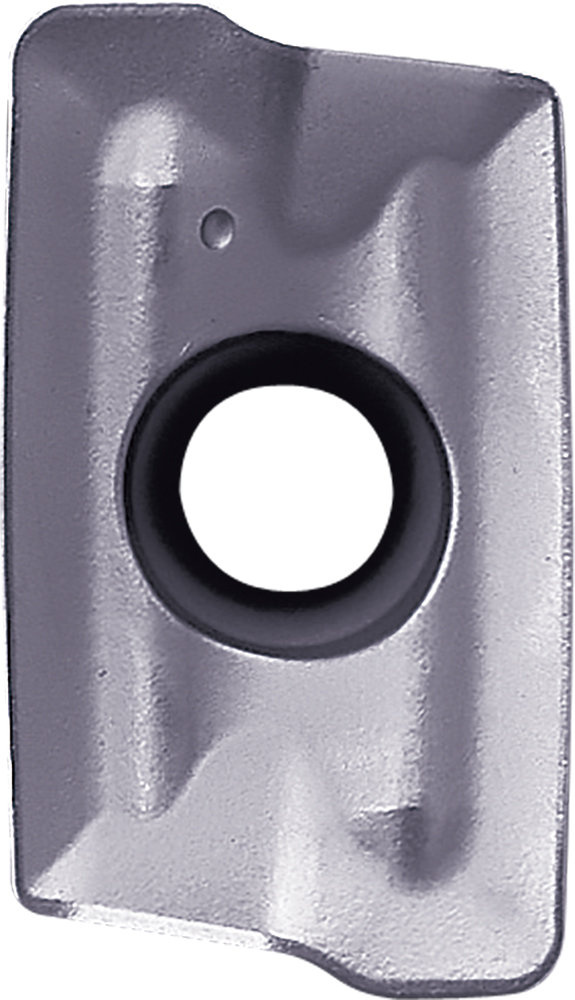

Kyocera BDMT 110302ERJT PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00031
$27.28
Kyocera BDMT 110302ERJT PR1825 Grade PVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MEC
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
0.20 mm
Grade
PR1825
Thickness
3 mm
Style
BDMT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.12
Shape
Parallelogram
Insert Holding Method
Screw
ANSI Part Number
BDMT110302ERJTPR1825
ISO Part Number
BDMT110302ER-JT
Rake
Positive
Number of Cutting Edges
2
Insert Size
110302
Chipbreaker
ER-JT
Cutting Range
Roughing
Corner Radius (Decimal)
0.01
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Kyocera BDMT 110302ERJT PR1825 Grade PVD Carbide, Indexable Milling Insert
$27.28
