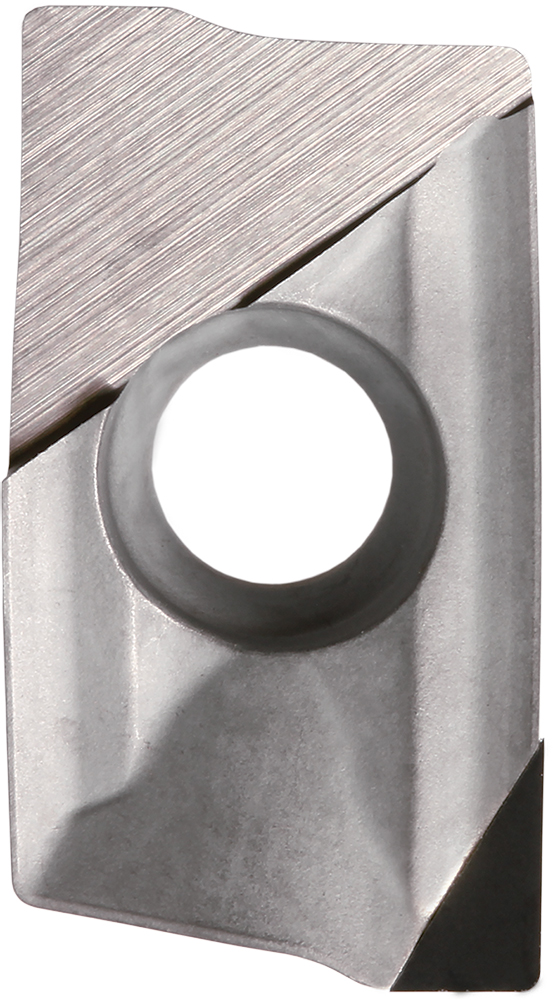

Kyocera BDMT 11T304FR KPD230 Grade PCD, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBD00291
$211.86
Kyocera BDMT 11T304FR KPD230 Grade PCD, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Finishing in (N) Non-Ferrous Metals and (S) Titanium Alloy

Specifications

Series
MEC
Unit of Measure
Metric
Cutting Direction
Right
Material
PCD
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius
0.40 mm
Corner Radius (Fractional)
1/64
Grade
KPD230
Thickness
3.80 mm
Style
BDMT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.15
Shape
Parallelogram
Insert Holding Method
Screw
Old Material Number
8829659
ANSI Part Number
BDMT11T304FRKPD230
ISO Part Number
BDMT11T304FR
Rake
Positive
Number of Cutting Edges
1
Insert Size
11T304
Chipbreaker
FR
Cutting Range
Finishing
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
