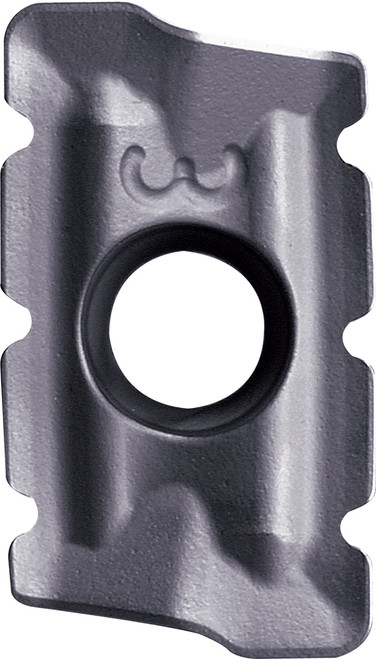

Kyocera BDMT 11T308ERN3 PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00034
$29.41
Kyocera BDMT 11T308ERN3 PR1810 Grade PVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MEC
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1810
Thickness
3.80 mm
Style
BDMT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.15
Shape
Parallelogram
Insert Holding Method
Screw
ANSI Part Number
BDMT11T308ERN3PR1810
ISO Part Number
BDMT11T308ER-N3
Rake
Positive
Number of Cutting Edges
2
Insert Size
11T308
Chipbreaker
ER-N3
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Kyocera BDMT 11T308ERN3 PR1810 Grade PVD Carbide, Indexable Milling Insert
$29.41
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
