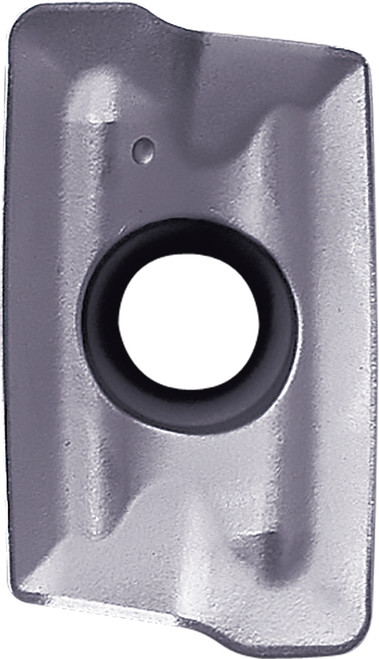

Kyocera BDMT 11T320ERJT PR1535 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC00364
$29.41
Kyocera BDMT 11T320ERJT PR1535 Grade PVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
MEC
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Corner Radius
2 mm
Corner Radius (Fractional)
5/64
Grade
PR1535
Thickness
3.80 mm
Style
BDMT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.15
Shape
Parallelogram
Insert Holding Method
Screw
Old Material Number
8838210
ANSI Part Number
BDMT11T320ERJTPR1535
ISO Part Number
BDMT11T320ER-JT
Rake
Positive
Number of Cutting Edges
2
Insert Size
11T320
Chipbreaker
ER-JT
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
