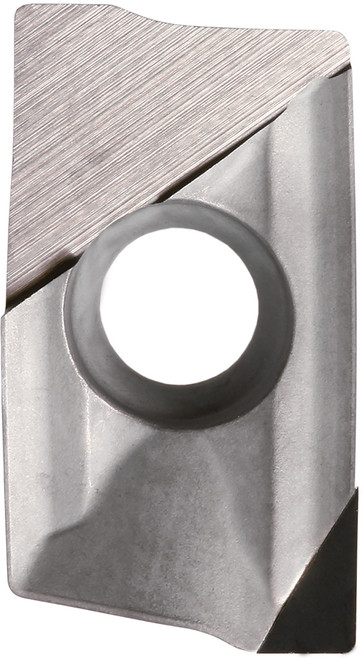

Kyocera BDMT 170402FR KPD001 Grade PCD, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR00295
$226.04
Kyocera BDMT 170402FR KPD001 Grade PCD, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Finishing in (N) Non-Ferrous Metals and (S) Titanium Alloy

Specifications

Series
MEC
Unit of Measure
Metric
Cutting Direction
Right
Material
PCD
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius
0.20 mm
Grade
KPD001
Thickness
4.90 mm
Style
BDMT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.19
Shape
Parallelogram
Insert Holding Method
Screw
Old Material Number
8822211
ANSI Part Number
BDMT170402FRKPD001
ISO Part Number
BDMT170402FR
Rake
Positive
Number of Cutting Edges
1
Insert Size
170402
Chipbreaker
FR
Cutting Range
Finishing
Corner Radius (Decimal)
0.01
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Kyocera BDMT 170402FR KPD001 Grade PCD, Indexable Milling Insert
$226.04
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
