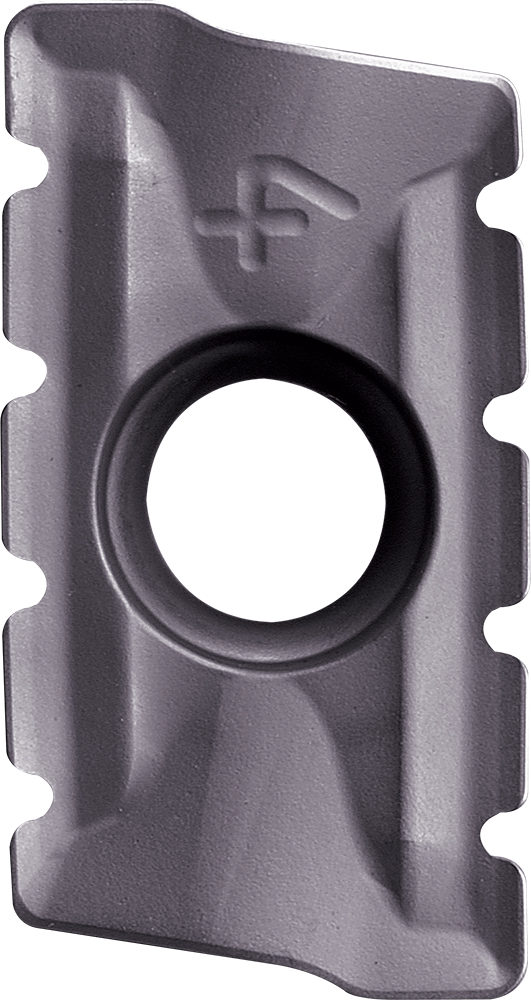

Kyocera BDMT 170408ERN4 PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00060
$33.28
Kyocera BDMT 170408ERN4 PR1825 Grade PVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MEC
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1825
Thickness
4.90 mm
Style
BDMT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.19
Shape
Parallelogram
Insert Holding Method
Screw
ANSI Part Number
BDMT170408ERN4PR1825
ISO Part Number
BDMT170408ER-N4
Rake
Positive
Number of Cutting Edges
2
Insert Size
170408
Chipbreaker
ER-N4
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
