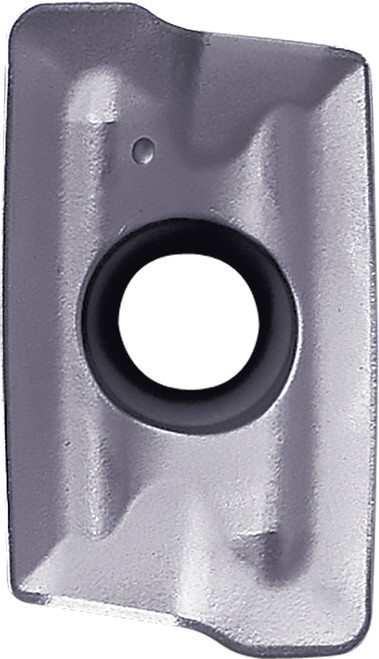

Kyocera Milling Insert BDMT170412ERJT PR1825: TLT00051

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00051
$33.28

Kyocera MEC milling insert for steel. Carbide, MEGACOAT NANO EX (PVD) coating. Manufacturer part number TLT00051.

Specifications

Series
MEC
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT NANO EX
Insert Thickness (Metric)
4.90
Corner Radius (Metric)
1.20
Corner Radius (Fractional)
3/64
Machining Operations
Facing, Helical Milling, Shouldering, Slotting
ANSI Designation
BDMT170412ERJTPR1825
Insert Style
BDMT
Insert Grade
PR1825
Chip Breaker Type
ER-JT
Insert Shape
Parallelogram
Insert Holding Method
Screw
Workpiece Material
Steel
Insert Thickness (Decimal)
0.1930
Rake
Positive
Number of Cutting Edges
2
Insert Size
170412
ISO Designation
BDMT170412ER-JT
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Coating Process
PVD
Secondary Workpiece Material
Stainless Steel
Kyocera Milling Insert BDMT170412ERJT PR1825: TLT00051
$33.28
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
