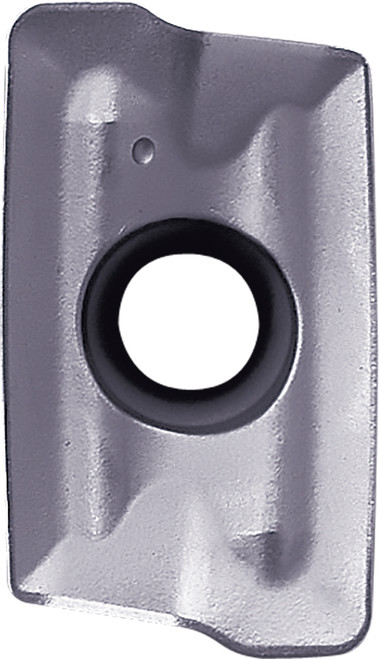

Kyocera Milling Insert BDMT170424ERJT PR1810: TLS00030

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00030
$33.28

Kyocera MEC milling insert for cast iron. Carbide, MEGACOAT NANO EX (PVD) coating. Manufacturer part number TLS00030.

Specifications

Series
MEC
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT NANO EX
Insert Thickness (Metric)
4.90
Corner Radius (Metric)
2.40
Corner Radius (Fractional)
3/32
Machining Operations
Facing, Helical Milling, Shouldering, Slotting
ANSI Designation
BDMT170424ERJTPR1810
Insert Style
BDMT
Insert Grade
PR1810
Chip Breaker Type
ER-JT
Insert Shape
Parallelogram
Insert Holding Method
Screw
Workpiece Material
Cast Iron
Insert Thickness (Decimal)
0.1930
Rake
Positive
Number of Cutting Edges
2
Insert Size
170424
ISO Designation
BDMT170424ER-JT
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Coating Process
PVD
