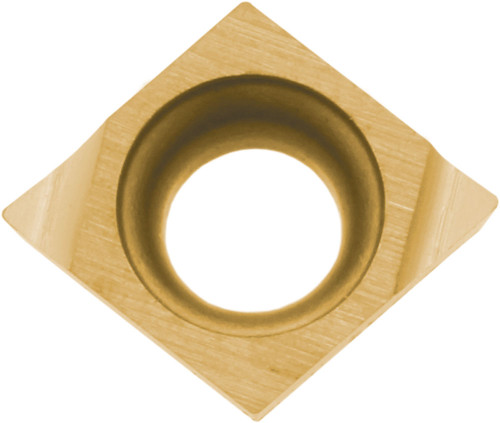

Kyocera CCET 110902MLF PV720 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD00948
$30.50
Kyocera CCET 110902MLF PV720 Grade PVD Cermet, 7 Degree, Diamond, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Imperial
Cutting Direction
Left
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
0.004 Inch
Included Angle
80 degrees
Thickness
0.06 Inch
Style
CCET
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
110902
Old Material Number
8862072
ANSI Part Number
CCET110902MLFPV720
ISO Part Number
CCET030101ML-F
Rake
Positive
Material Group / Grade
PV720
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Thickness (Metric)
1.40
Chipbreaker
F
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
3.50
Inscribed Circle
0.14 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
