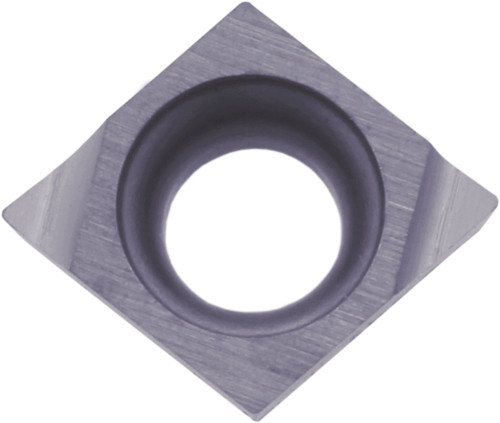

Kyocera CCET 141102MLFSF PR1225 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE01022
$42.27
Kyocera CCET 141102MLFSF PR1225 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing in (M) Stainless Steel and (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Imperial
Cutting Direction
Left
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Corner Radius
0.004 Inch
Included Angle
80 degrees
Thickness
0.07 Inch
Style
CCET
Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
141102
Old Material Number
8831748
ANSI Part Number
CCET141102MLFSFPR1225
ISO Part Number
CCET040101ML-FSF
Rake
Positive
Material Group / Grade
PR1225
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Thickness (Metric)
1.80
Chipbreaker
FSF
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
4.30
Inscribed Circle
0.17 Inch
Pack quantity
10
Kyocera CCET 141102MLFSF PR1225 Grade PVD Carbide, Indexable Turning Insert
$42.27
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
